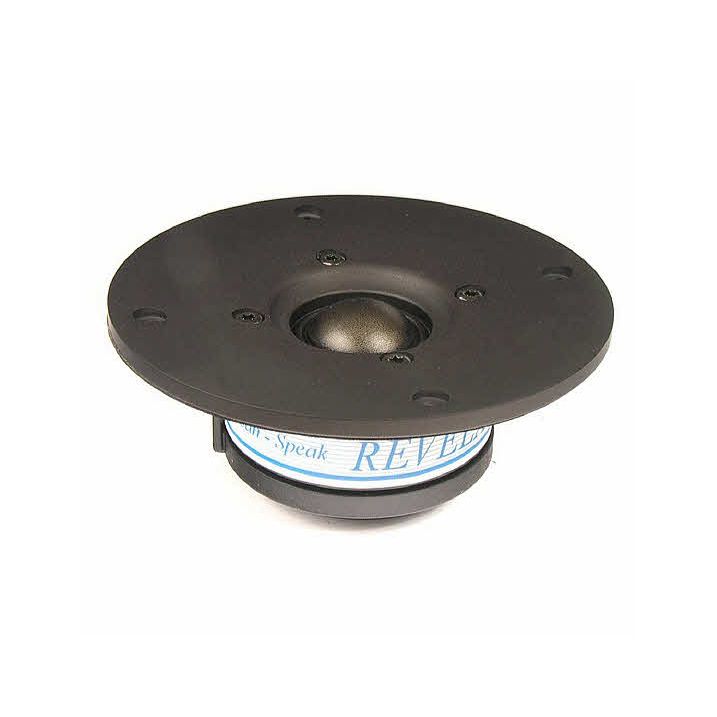

Scanspeak D2905/990000 the first Revelator tweeter, a member of the world-famous premium Revelator Range. Black anodised and machined aluminium face plate, 6 mounting holes.
This tweeter features a 1" optimised coated textile 28mm vc dome, non-resonant Aluminum multiple facet chamber, low compression, all with a “SD-2" Neodymium large magnet symmetric drive motor system. Excellent wide dispersion from a large wave guide front and very low distortion.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Revelator |
|---|---|
| Nominal Impedance | 6 ohms |
| Nominal Power RMS | 225W |
| Vas ( l) | 0.02 l |
| Nominal Free Air Resonance Fs | 500 Hz |
| Sensitivity (2.83V/1m) | 91.0 dB |
| Nominal Rdc | 5.6 ohm |
| Qes | 0.72 |
| Qms | 4.83 |
| Qts | 0.63 |
