Product Description
Details

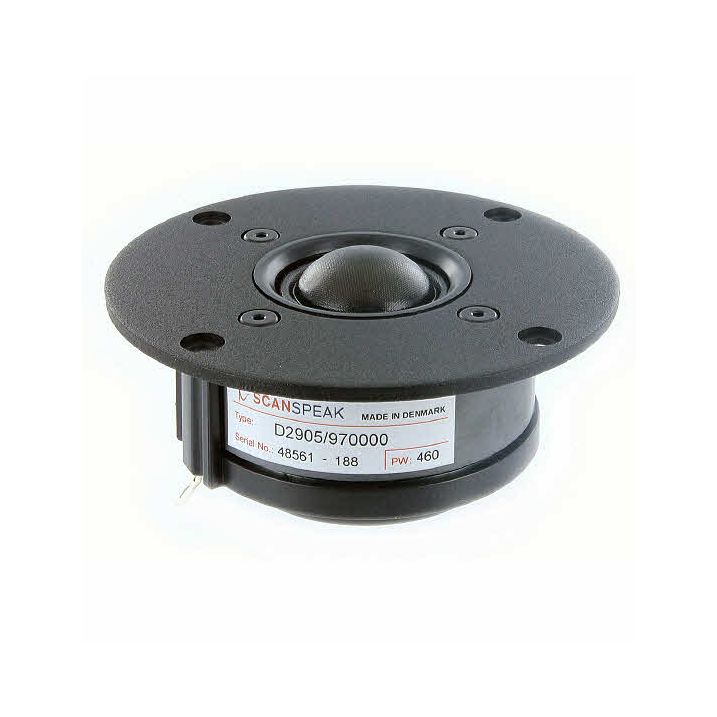

Scanspeak D2905/970000 Tweeter, a Classic Range Tweeter. Scanspeak D2905/970000 features a specially hand-coated 1" textile diaphragm, and uses the Symmetrical DRive SD-2 motor, which gives frequency extension above 30KHz, high power handling and low resonances. Very low Fs. Aluminum face plate.
This tweeter has a low resonance rear chamber.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
Additional Information
Additional Information
Scanspeak Range | Scanspeak Classic |
---|---|
Nominal Impedance | 6 ohms |
Nominal Power RMS | 225W |
Vas ( l) | 0.02 l |
Nominal Free Air Resonance Fs | 500 Hz |
Sensitivity (2.83V/1m) | 89.5 dB |
Nominal Rdc | 5.7 ohm |
Qes | 0.54 |
Qms | 3.45 |
Qts | 0.47 |
