Product Description
Details

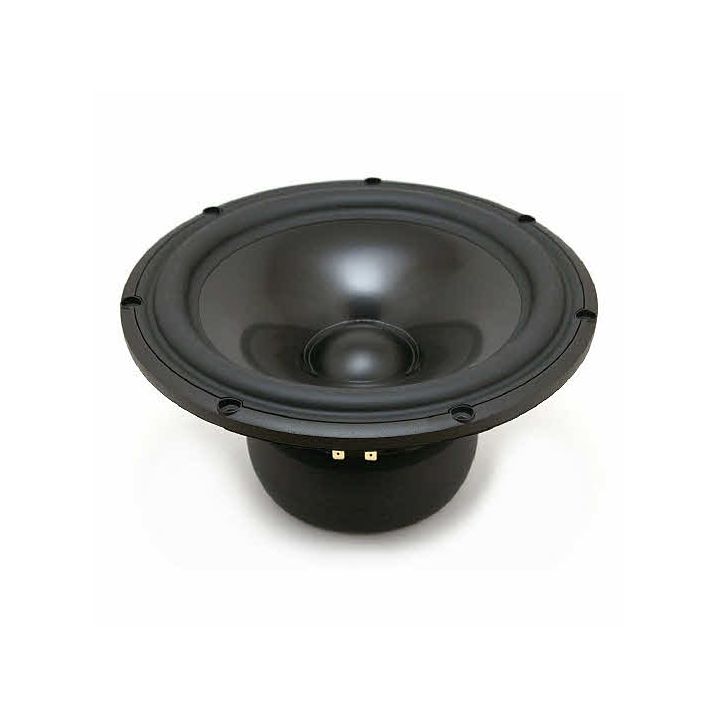

Scanspeak 26W/8867T00 Woofer - Revelator Range. Revelator woofers are drive units that feature very rigid paper or aluminium cones with a strong wide frequency pure piston action. Powered by the Symmetrical Drive SD-1 Motor design, a low-loss linear suspension, the combination gives very low distortion and a famously smooth frequency response which has made this top audiophile range uniquely successful.
8 Ohm 10" unit. Die-Cast Aluminum Chassis vented below spider. Low Damping SBR Rubber surround, Low Loss linear suspension, rigid black anodised aluminium cone, large Rubber Boot ferrite magnet system and a high output.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Revelator |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 170 W |
| Vas ( l) | 176 l |
| Nominal Free Air Resonance Fs | 18 Hz |
| Sensitivity (2.83V/1m) | 87 dB |
| Nominal Rdc | 5.8 ohm |
| Qes | 0.31 |
| Qms | 4.5 |
| Qts | 0.29 |
