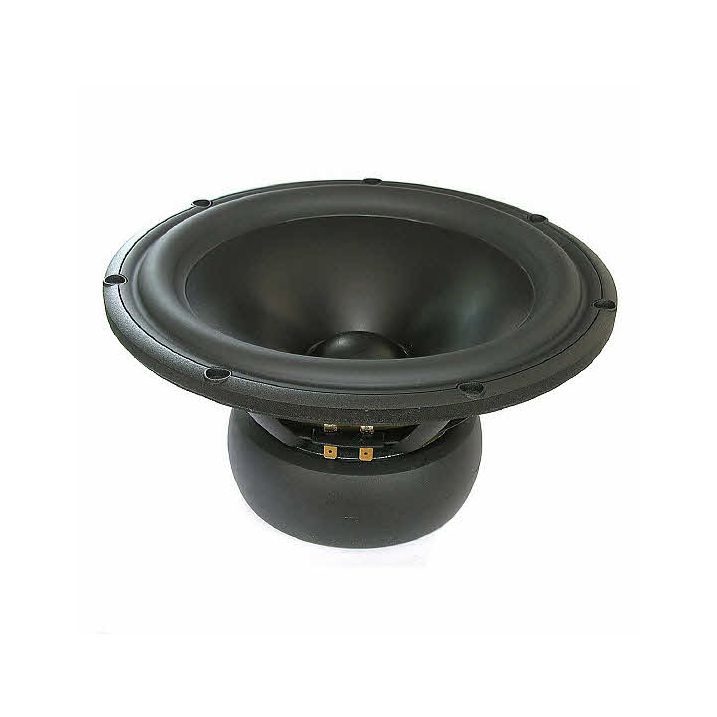

Scanspeak 26W/8861T00 Woofer - Revelator Range. Revelator woofers are drive units that feature very rigid paper or aluminium cones with a strong wide frequency pure piston action. Powered by the Symmetrical Drive SD-1 Motor design, a low-loss linear suspension, the combination gives very low distortion and a famously smooth frequency response which has made this top audiophile range uniquely successful.
8 Ohm 10" unit. Die-Cast Aluminum Chassis vented below spider. Low Damping SBR Rubber surround, Low Loss linear suspension, rigid paper cone, large Rubber Boot ferrite magnet system and a high output.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
|Scanspeak Range||Scanspeak Revelator|
|Nominal Impedance||8 ohms|
|Nominal Power RMS||170 W|
|Vas ( l)||231 l|
|Nominal Free Air Resonance Fs||19 Hz|
|Sensitivity (2.83V/1m)||88.5 dB|
|Nominal Rdc||6.2 ohm|
