Product Description
Details

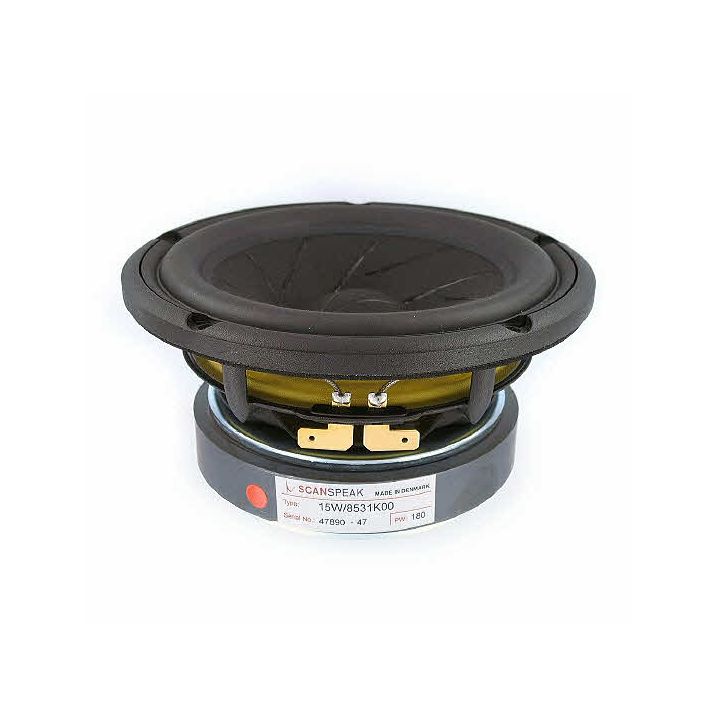

Scanspeak 15W/8531K00 Mid Woofer - Revelator Range. Revelator midwoofers are famous for their Scanspeak Sliced Paper Cones, the slices are filled with damping glue. The effect is to reduce break-up nodes in the 6" cone, and give a midrange clarity and overall smooth frequency response which has made this top audiophile range uniquely successful.
Die cast Aluminum Chassis vented below spider
Low Loss linear suspension, large ferrite magnet system and a high output. Symmetrical Drive Motor System, Low Damping SBR Rubber Surround.
Delivery is normally 7-10 working days if not in stock. Priced per unit, sold in boxed pairs.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Revelator |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 60 W |
| Vas ( l) | 24.00 l |
| Nominal Free Air Resonance Fs | 32 Hz |
| Sensitivity (2.83V/1m) | 85.5 dB |
| Nominal Rdc | 6.9 ohm |
| Qes | 0.33 |
| Qms | 5.23 |
| Qts | 0.31 |
