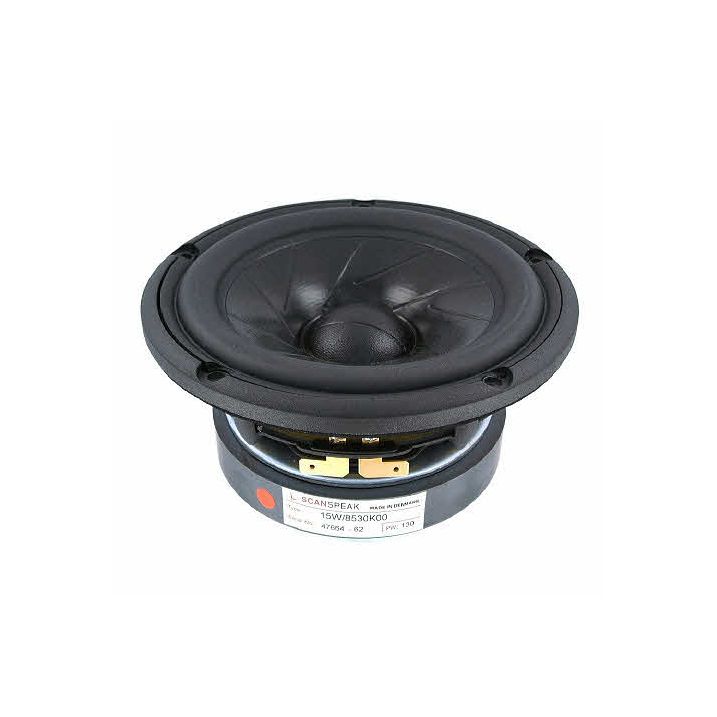

Scanspeak 15W/8530K00 Mid Woofer - Revelator Range. Revelator midwoofers are famous for their Scanspeak Sliced Paper Cones, the slices are filled with damping glue. The effect is to reduce break-up nodes in the 6" cone, and give a midrange clarity and overall smooth frequency response which has made this top audiophile range uniquely successful.
Low Loss linear suspension, large ferrite magnet system and a high output. Symmetrical Drive Motor System, Low Damping SBR Rubber Surround.
Delivery is normally 7-10 working days if not in stock. Priced per unit, sold in boxed pairs.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Revelator |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 60 W |
| Vas ( l) | 27.40 l |
| Nominal Free Air Resonance Fs | 30 Hz |
| Sensitivity (2.83V/1m) | 85.5 dB |
| Nominal Rdc | 6.9 ohm |
| Qes | 0.29 |
| Qms | 4.9 |
| Qts | 0.27 |
