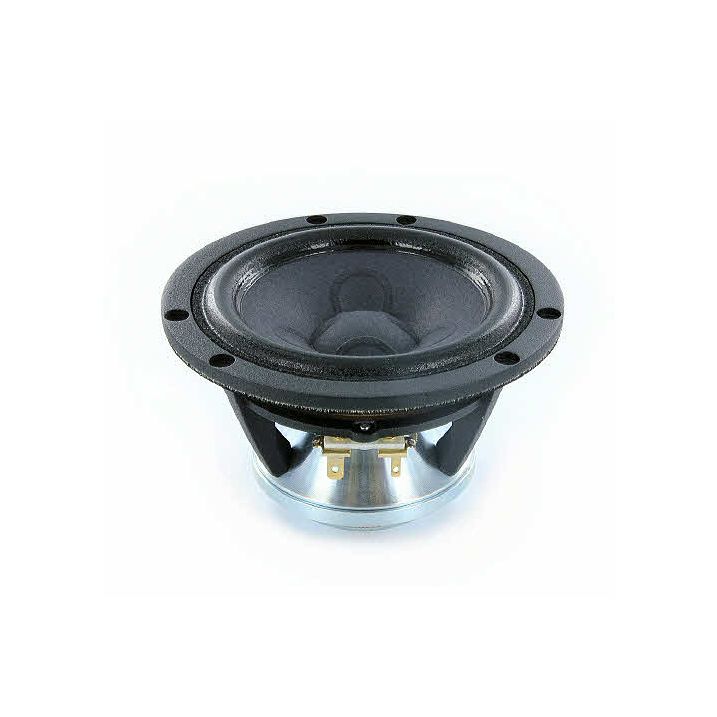

Scanspeak 12MU/8731T00 Mid Range - Illuminator Range 8 Ohm version. Illuminator midranges have a superb very wide frequency response ( 100Hz - 10KhZ), and very low distortion. The unique cone and one-piece dust cap construction (see picture) produces simply outstanding results.
This stunning driver range have a common open construction, extremely long linear excursion, all powered by an Under-Hung Neodymium Magnet System and the Copper capped Scanspeak SD-3 Symmetrical Drive.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
Additional Information
Additional Information
| Scanspeak Range | Scanspeak Illuminator |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 150W |
| Vas ( l) | 5.8 l |
| Nominal Free Air Resonance Fs | 66 Hz |
| Sensitivity (2.83V/1m) | 87.2 dB |
| Nominal Rdc | 7.7 ohm |
| Qes | 0.31 |
| Qms | 3.363 |
| Qts | 0.29 |
