Product Description
Details

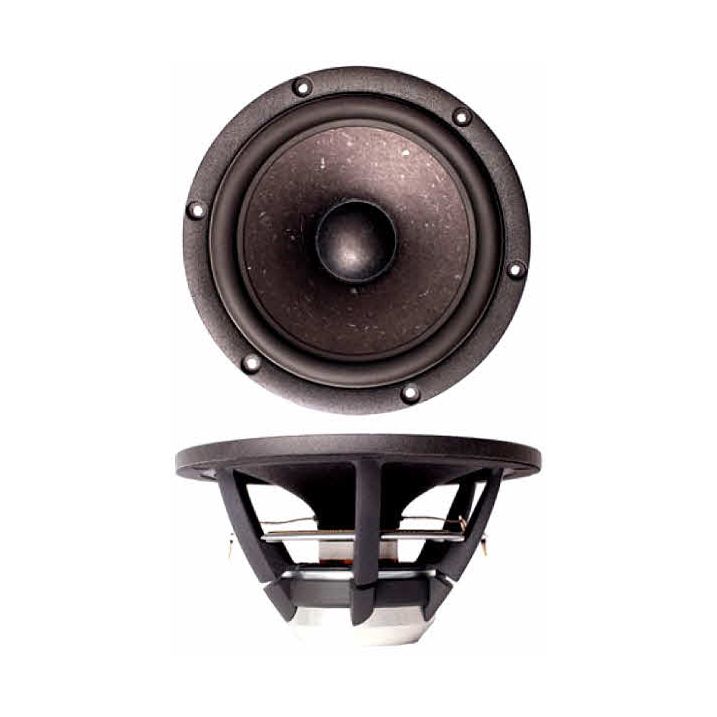

SB Acoustics Satori MW16P-4 Midwoofer is a State of The Art Neodymium magnet 6.5" 4ohm midwoofer, featuring a proprietary Papyrus Paper cone, a high efficiency low damping optimum response rubber surround, BiMax spider, and a glassfibre former with copper sleeve pole piece.
Fitted with a 1.5" voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for lower distortion. Fs 28Hz, and a fabulous level wide response curve.level midrange response, a very flexible unit. For an 8 ohm version, see MW16P-8
Priced individually, supplied in pairs.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Nominal Impedance | 4 ohm |
|---|---|
| Nominal Power RMS | 60W |
| Vas ( l) | 50.2 l |
| Nominal Free Air Resonance Fs | 28 Hz |
| Sensitivity (2.83V/1m) | 90.50 dB |
| Nominal Rdc | 3.40 ohm |
| Qes | 0.28 |
| Qms | 5 |
| Qts | 0.27 |
