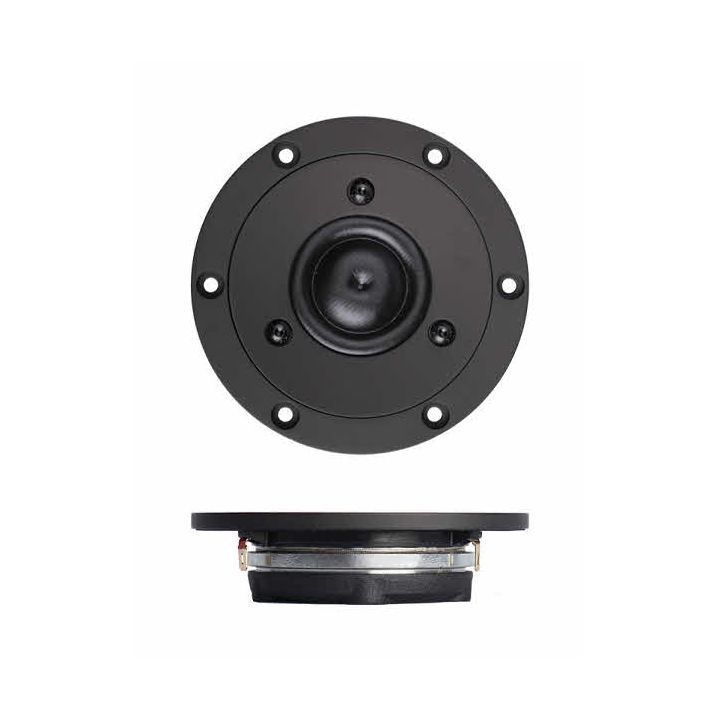

TW29RN-B 4 4 OHM Black SATORI Tweeter by SB ACOUSTICS, renowned for an extended level response and superb off-axis characteristics. 103.8mm diameter faceplate, long life silver lead wires. Low Resonance Frequency for extended range.
Featuring a non-resonant diaphragm design for minimum high frequency break-up, two part aluminum faceplate with integrated mechanical decoupling and dual balanced compression chambers for improved dynamics. Dual copper caps for absolute minimum voice coil inductance and minimum phase shift, Neo magnet saturation controlled motor system with T-shaped pole piece for lower distortion.
Designed with a non-reflective cast aluminum chamber with optimized damping for improved dynamics, and flow optimized vented pole piece for optimum coupling to rear chamber.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Nominal Impedance||4 ohm|
|Nominal Power RMS||80W|
|Vas ( l)||-|
|Nominal Free Air Resonance Fs||700 Hz|
|Sensitivity (2.83V/1m)||96 dB|
|Nominal Rdc||3 ohms|
