Product Description
Details

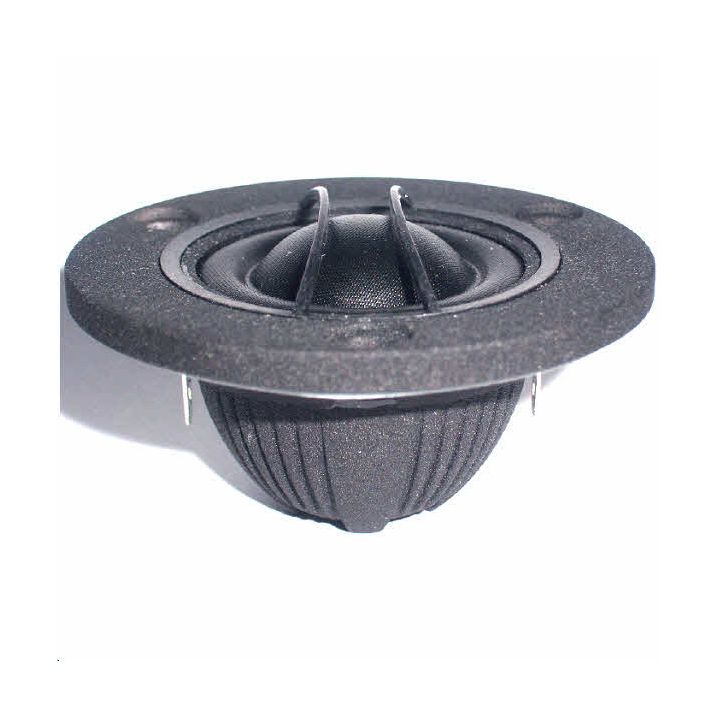

Peerless Vifa NE25VTS-04 Tweeter is an NE Range 25mm voice coil 4 ohm tweeter featuring a silk diaphragm optimised for clarity and quality. Neodymium-Iron-Boron magnet, copper caps for extended frequency and low distortion. Aluminum rear chambers for extended LF response and additional cooling. Quality Aluminum faceplate with recessed mounting holes. No Ferrofluid.
A product datasheet can be downloaded by clicking on the .pdf logo. Sold in pairs.
Additional Information
Additional Information
| Peerless Line | Peerless Platinum Line |
|---|---|
| Peerless Series | Vifa NE Series |
| Nominal Impedance | 4 ohms |
| Nominal Power RMS | 80 |
| Vas ( l) | 0.01 l |
| Nominal Free Air Resonance Fs | 733 Hz |
| Sensitivity (2.83V/1m) | 91.1 dB |
| Nominal Rdc | 3.2 |
| Qes | 1.12 |
| Qms | 4.4 |
| Qts | 0.89 |
