Product Description
Details

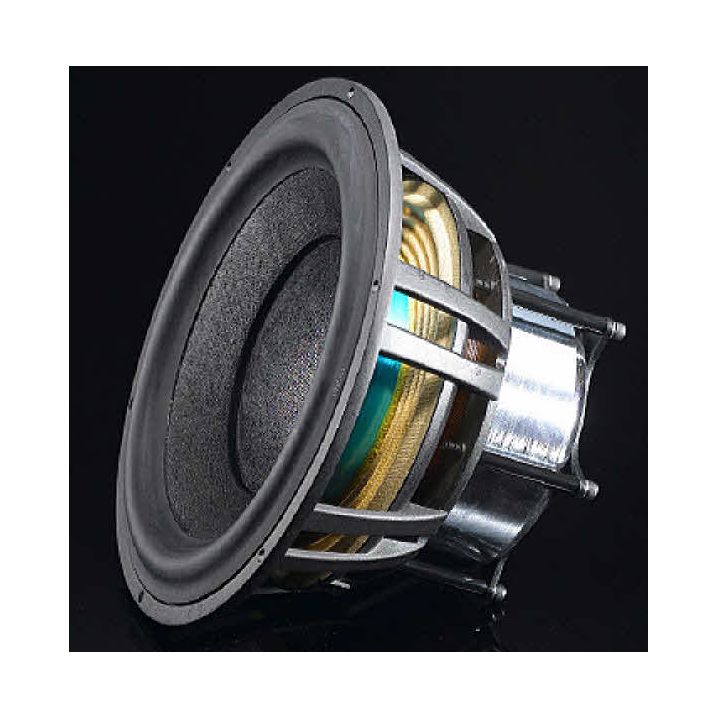

Morel UW 1058 SubWoofer is a 10" subwoofer, with a 5.1" Hexatech Aluminum voice coil, featuring Morel's Progression Field Symmetry spider/surround engineering system. Equipped with a one piece paper cone and dust cap assembly for additional rigidity, and powered by a vented High Flux double ferrite magnet motor mounted on an aluminum die cast chassis.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
| Morel Driver Series | Morel Ultimate |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 500W |
| Vas ( l) | 40.8 l |
| Nominal Free Air Resonance Fs | 26 |
| Sensitivity (2.83V/1m) | 85.8 dB |
| Nominal Rdc | 6.80 ohms |
| Qes | 0.58 |
| Qms | 1.72 |
| Qts | 0.43 |
