Product Description
Details

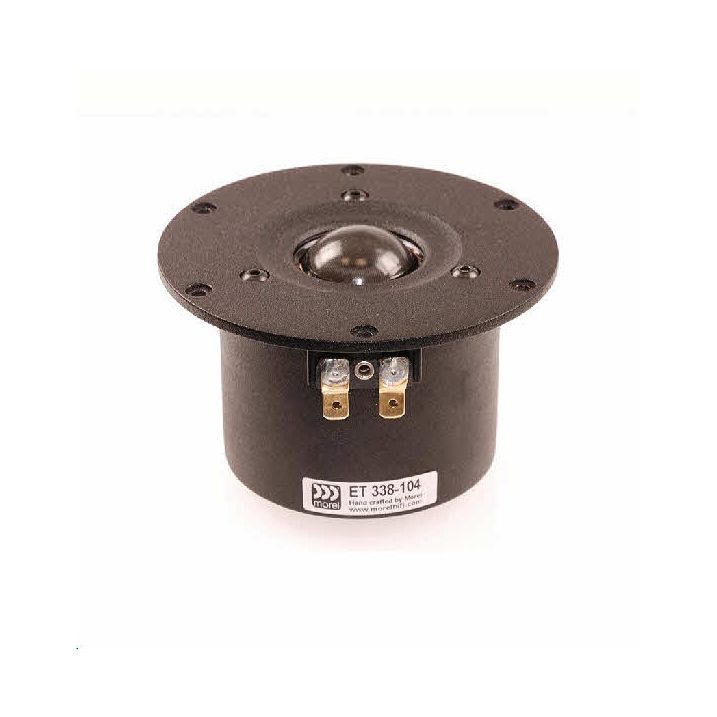

Morel ET 338-104 Tweeter is a 104mm faceplate diameter soft dome tweeter with a 28mm Hexatech aluminum voice coil and replaceable Acuflex dome/voice coil assembly. It features Morels’ IDR™ Improved Dispersion Recess aluminum face plate, aluminum rear chamber, triple magnet system, ferrofluid cooling and high power handling. Priced individually, supplied in pairs.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
Morel Driver Series | Morel Elite |
---|---|
Nominal Impedance | 8 ohms |
Nominal Power RMS | 200W |
Vas ( l) | - |
Nominal Free Air Resonance Fs | 700 |
Sensitivity (2.83V/1m) | 92.5dB |
Nominal Rdc | 5.20 ohms |
Qes | - |
Qms | - |
Qts | - |
