Product Description
Details

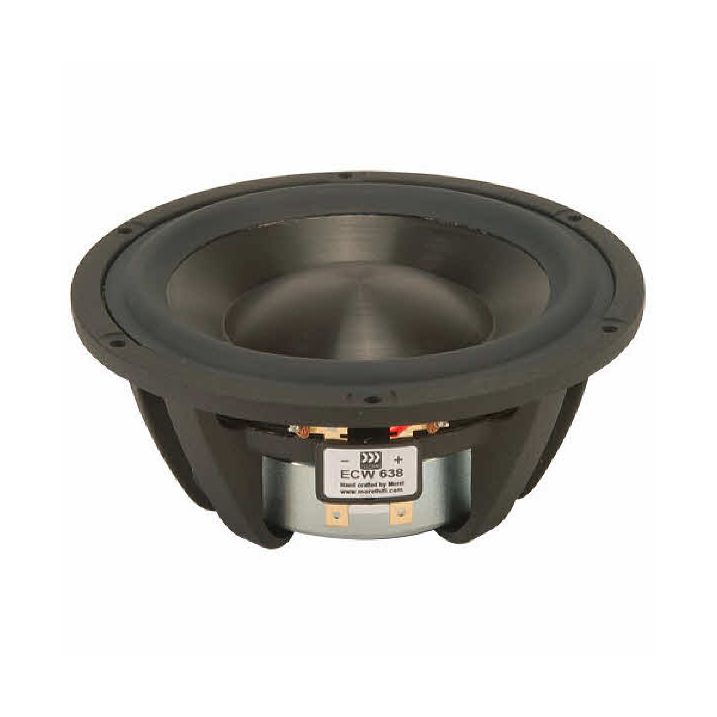

Morel ECW 638 CopperSleeve Woofer is a 6" woofer, with a 3" voice coil. It features a hybrid Neodymium/Ferrite magnet motor and aluminum chassis. 6.00mm linear high excursion. Copper Insulated Centre Pole. Priced individually, supplied in matched pairs.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Additional Information
Additional Information
Morel Driver Series | Morel Elite |
---|---|
Nominal Impedance | 8 ohms |
Nominal Power RMS | 150W |
Vas ( l) | 19.00 l |
Nominal Free Air Resonance Fs | 39 |
Sensitivity (2.83V/1m) | 88 dB |
Nominal Rdc | 5.00 ohms |
Qes | 0.36 |
Qms | 1.42 |
Qts | 0.29 |
