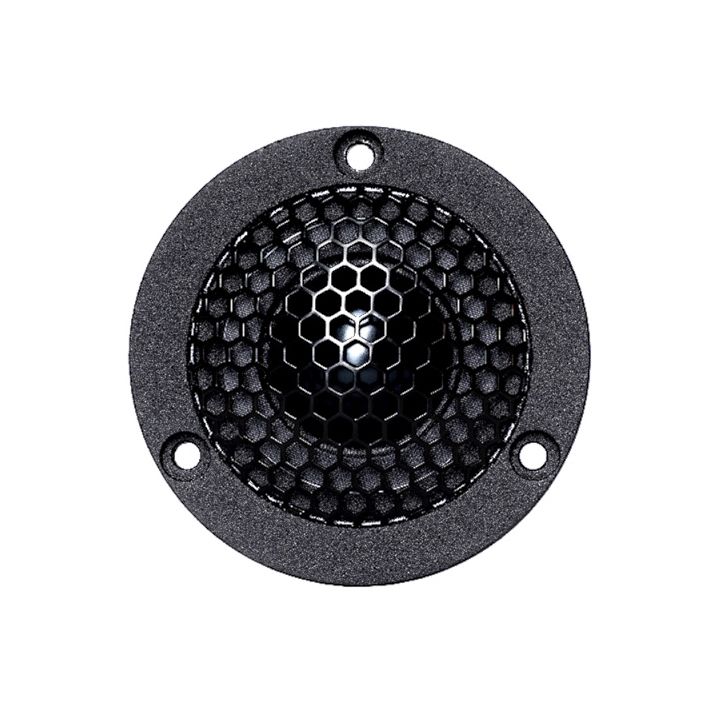

BlieSMa T25A-6 Alum/Mag Alloy Dome Tweeter
BlieSMa T25A-6 25mm Tweeter. 6 ohms. 91.5dB sens. 25mm aluminium-magnesium alloy dome with variable thickness for ultrasonic first breakup mode. Natural wool damped rear chamber. No ferrofluid.
Underhung voice coil, titanium former. 2mm p-p excursion. Large vent channel for undistorted low frequency operation. Flush mounted surround and rear mounted magnet system for flat frequency response and wide off-axis response. The Aluminium rear chamber has natural wool damping. Gold plated wire terminals. No ferrofluid for improved dynamics.
Recommended frequency range 2.2kHz-35kHz
Priced per unit, sold in boxed pairs (Qty2)
BlieSMa T25A-6 25mm Tweeter. 6 ohms. 91.5dB sens.
- 25mm aluminium-magnesium alloy dome with variable thickness for ultrasonic first breakup mode
- Narrow surround for less "soft dome" coloration
- Extremely low moving mass for better transient response and higher efficiency
- Flush mounted surround and rear mounted magnet system mode for flat frequency response and wide off-axis response
- Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
- No ferrofluid for improved dynamics
- Underhung voice coil wound on titanium former
- 2mm linear excursion
- Aluminium rear chamber with natural wool damping
- Gold plated wire terminals
- Recommended frequency range 2.2kHz-35kHz
Delivery is normally 7-10 working days if not in stock.
Supplied in boxed pairs (2 units) only. Priced per unit.
A Product Datasheet is available below.
| Driver Impedance | 6.0 |
|---|---|
| Driver Rdc | 5.2 |
| Driver Sens SPL | 91.5dB |
| Driver Fs | 980 Hz |
| Driver Bl | 2.6 |
| Driver Qes | 0.82 |
| Driver Qms | 1.35 |
| Driver Qts | 0.51 |
| Driver Power | 100 |
| Driver Vas | - |
