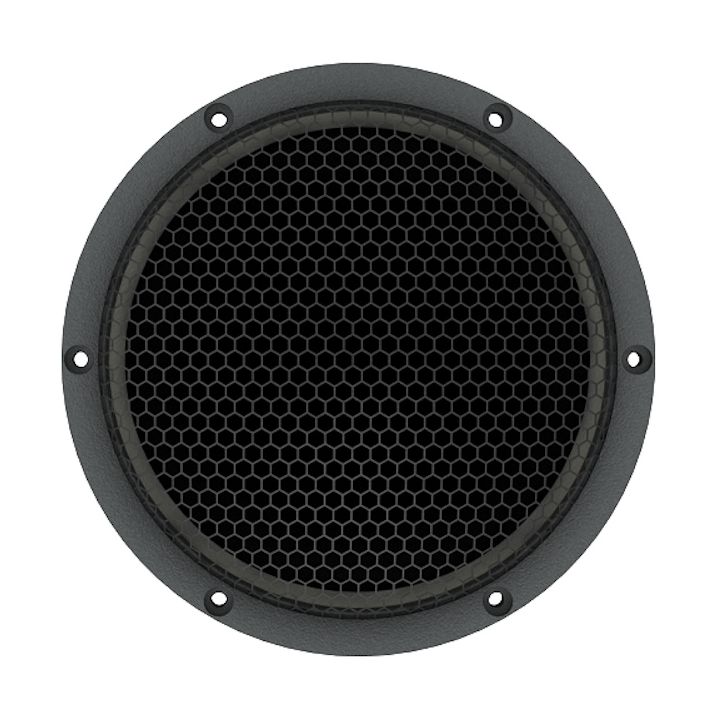

BlieSMa M142A-6 Alum/Mag Alloy Dome Midrange
BlieSMa M142A-6 142mm Midrange. 6 ohms. 94.5dB sens. 142 mm aluminium-magnesium alloy dome with variable thickness for higher first breakup mode. Ultra-Low moving mass for optimum transient response and sensitivity. Neo Cu sleeve motor for low distortion. 137 mm voice coil for low thermal compression.
Ring magnet system with large rear opening reduces backside reflections and improves dipole operation
Natural silk surround and cotton spider from Dr. Kurt Müller GmbH & Co. for higher midrange resolution. Surround hidden in basket rim allows significant reduction of mounting diameter
Underhung voice coil, titanium former. 3.7mm p-p excursion. Thick aluminium powder coated basket. Gold plated wire terminals.
Recommended frequency range 180Hz -2.8Hz
Priced per unit, sold in boxed pairs (Qty2)
BlieSMa M142P-6 142mm Midrange. 6 ohms. 94.5dB sens
- 142 mm aluminium-magnesium alloy dome with variable thickness for higher first breakup mode
- Ultra-Low moving mass for optimum transient response and sensitivity
- Natural silk surround and cotton spider from Dr. Kurt Müller GmbH & Co. for higher midrange resolution
- Surround hidden in basket rim allows significant reduction of mounting diameter
- Fully saturated neodymium motor with copper sleeve for low non linear and modulation distortion
- Ring magnet system with large rear opening reduces backside reflections and improves dipole operation
- 137 mm voice coil for low thermal compression
- Underhung voice coil wound on titanium former
- 3.7mm linear excursion
- Thick aluminium powder coated basket
- Gold plated wire terminals
- Recommended frequency range 180Hz -2.8kHz
Delivery is normally 7-10 working days if not in stock.
Supplied in boxed pairs (2 units) only. Priced per unit.
A Product Datasheet and M142 Series Application Notes are available below.
| Driver Impedance | 6.0 |
|---|---|
| Driver Rdc | 5.4 |
| Driver Sens SPL | 94.5 dB |
| Driver Fs | 65 |
| Driver Bl | 8.8 |
| Driver Qes | 0.31 |
| Driver Qms | 8.30 |
| Driver Qts | 0.31 |
| Driver Power | *Please refer to the application notes |
| Driver Vas | 24.6l |
