Product Description
Details

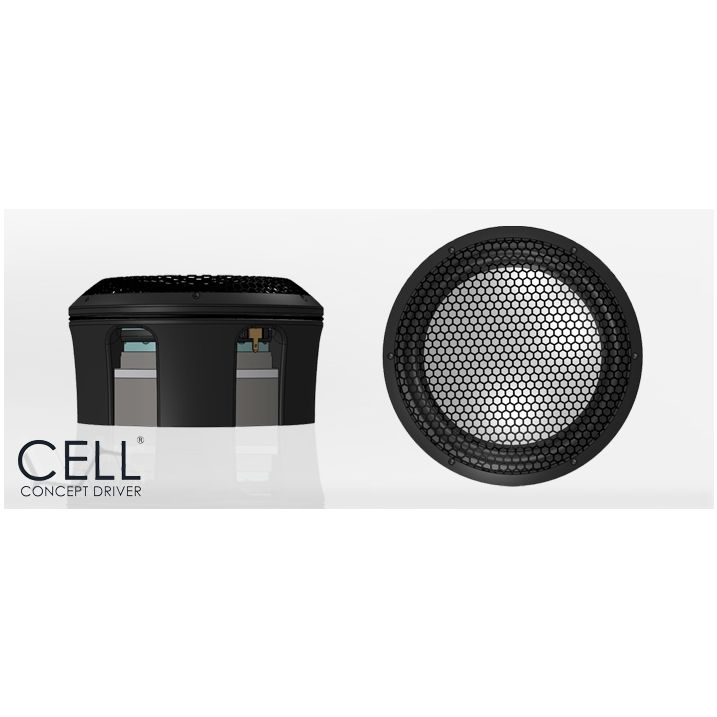

Accuton C90-6-724 is a 5 inch bass - midrange driver with ceramic dome, the first in an entirely new design approach by Accuton. An ideal acoustical center has been achieved, which is identical with Accuton tweeters. The novel designed underhung motor does not cover the rear of the dome, eliminating the chance for reflections and energy storage. A proprietary clamping technique provides easy mounting and adapting to individual frontplates.
A low loss rubber surround and a thin fabric spider center the moving parts with high linearity. Recommended application from 60 Hz – 6000 Hz
Delivery is normally 10-14 working days if not in stock.
Supplied in pairs (2 units) only. Free UK Delivery.
A Product Datasheet, a Dimensions Datasheet and 3D Picture links (n.b large file) are available below.
Additional Information
Additional Information
| Accuton Driver Series | Cell Concept Tweeter |
|---|---|
| Nominal Impedance | 6 ohm |
| Nominal Power RMS | 100 W |
| Vas ( l) | 5.10 l |
| Nominal Free Air Resonance Fs | 570 Hz |
| Sensitivity (2.83V/1m) | 89 |
| Nominal Rdc | 5.80 ohm |
| Qes | 0.58 |
| Qms | 5.47 |
| Qts | 0.52 |
