Accuton C90-6-078 Cell Tweeter
£571.75 £686.10

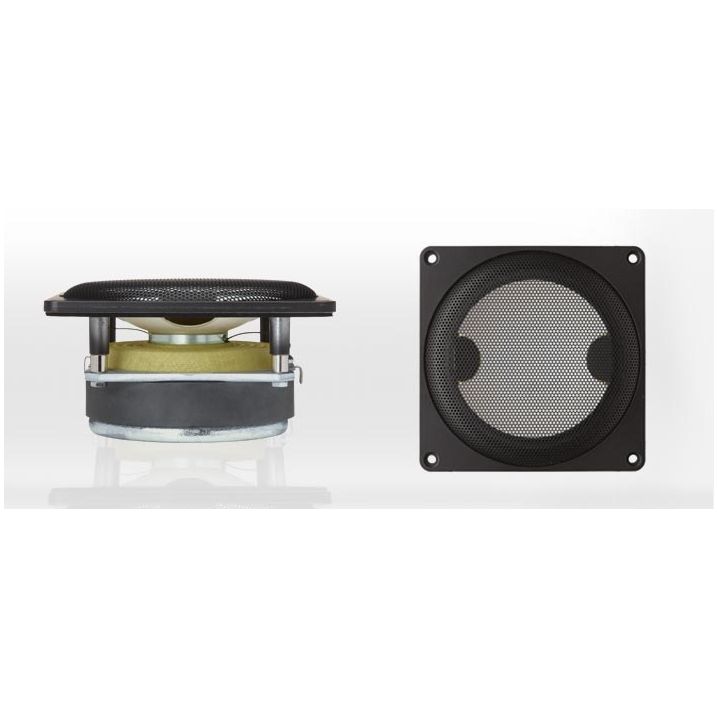

The Accuton C90-6-078 Cell Tweeter is a 90 mm ceramic cone tweeter with a neodymium magnet motor system. The voice coil is underhang, meaning it does not cover the back of the diaphragm. This design helps to reduce reflections and energy storage, resulting in a clearer and more detailed sound.
LAST FEW PRODUCTION UNITS OF THIS CLASSIC ACCUTON TWEETER AVAILABLE
AvailabilityIn stock
SKU
Accuton C90-6-078
The Accuton C90-6-078 Cell Tweeter is a 90 mm ceramic cone tweeter with a neodymium magnet motor system. The voice coil is underhang, meaning it does not cover the back of the diaphragm. This design helps to reduce reflections and energy storage, resulting in a clearer and more detailed sound.
Highlights
- Impedance: 6 ohms
- DC resistance: 6.4 ohms
- Maximum linear excursion: +/-3.0 mm
- Voice coil inductance: 0.13 mH
- Force factor: 5.95 N/A
- Ferrofluid: In air gap No.
The C90-6-078 has a frequency range of 200 Hz to 5000 Hz and a sensitivity of 88 dB. It is rated for a continuous power handling of 120 watts and a programme power handling of 180 watts.
The tweeter is available iwith a variety of mounting options, including screw-in, push-in, and magnet mount.
The Accuton C90-6-078 is a high-quality tweeter that is well-suited for use in a variety of applications, including home theater, studio monitor, and high-end audio systems.
Delivery is normally 10-14 working days if not in stock.
Supplied in pairs (2 units) only. Free UK Delivery.
A Product Datasheet and a Dimensions Datasheet are available below.
| Accuton Driver Series | Midrange |
|---|---|
| Driver Fs | 100 Hz |
| Driver Impedance | 6 ohm |
| Driver Power | 120 W |
| Driver Qes | 1.52 |
| Driver Qms | 2.4 |
| Driver Qts | 0.92 |
| Driver Rdc | 6.40 ohm |
| Driver Sens SPL | 88 |
| Driver Vas | 3.90 l |
