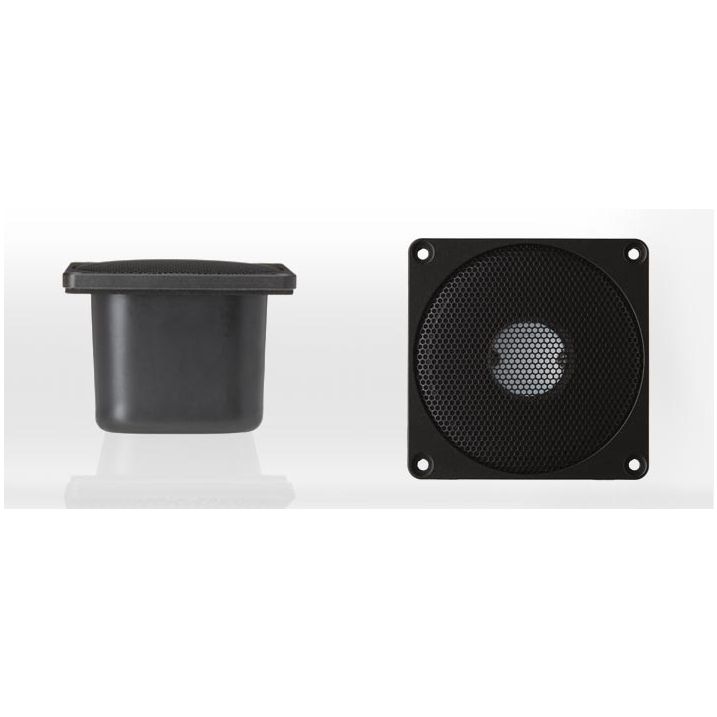

Accuton C25–6–013 is a 1 inch tweeter with ultra hard ceramic dome in a 82 mm frontplate. Anti-resonant cutout fills in the ceramic dome provide for damping of the 37 kHz dome resonance. An overhung Neo Magnet motor design with vented aluminium voice coil former guarantees low energy storage and good heat transfer.
The soft fabric surround and ferrofluid with high viscosity center the moving parts with excellent linearity. We recommend an application above 2500 Hz.
Delivery is normally 10-14 working days if not in stock. Supplied in pairs (2 units) only. Free UK Delivery.
A Product Datasheet, a Dimensions Datasheet and 3D Picture links (n.b large file) are available below.
Additional Information
Additional Information
| Accuton Driver Series | Square Basket Tweeter |
|---|---|
| Nominal Impedance | 8 ohm |
| Nominal Power RMS | 120 W |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 1450 Hz |
| Sensitivity (2.83V/1m) | 92 |
| Nominal Rdc | 6.10 ohm |
| Qes | 1.63 |
| Qms | 0.8 |
| Qts | 0.54 |
