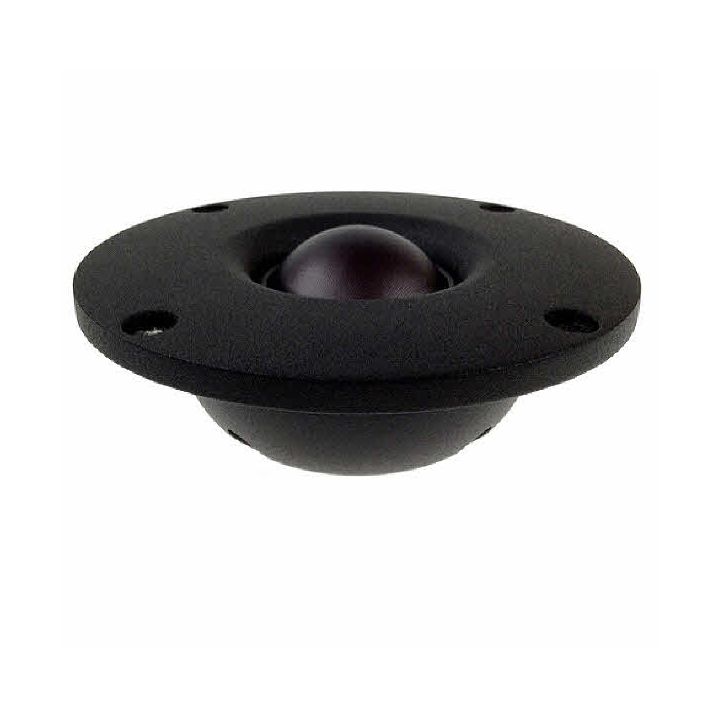

Seas T35C002 E0055-06 Tweeter - Excel Series

SEAS E0055-06 T35C002 is a classic 1.5" dome midrange tweeter with high sensitivity and an outstanding smooth, extended frequency response. Available in Factory Matched pairs on request - priced per drive unit.

AVAILABLE FOR IMMEDIATE DELIVERY.

A coated fabric dome with integral surround manufactured by Dr. K. Müller in Germany ensures excellent performance and consistency. This supplier was among the first in the world to offer fabric dome diaphragms, and made the diaphragm for the famous 1.5” Dome Tweeter H087, developed by Seas in 1968.

A small, high efficiency Neodymium ring magnet ensures high sensitivity and low distortion. The top plate and T-yoke are CNC machined for excellent precision. A well damped vented pole and a rigid rear chamber ensure a low resonance frequency and smooth response.

The underhung 35mm copper-clad aluminum voice coil wound from wire further enhances sensitivity, while flexible lead-out wires and venting holes in the aluminum coil former help reduce noise to a minimum.

A 7 mm thick precision die-cast aluminum front plate with moderate horn loading ensures linear frequency response and represents an extremely stable platform for the magnet system and the moving parts.

A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
