Restoring a NAIM Credo
Restoring a NAIM Credo

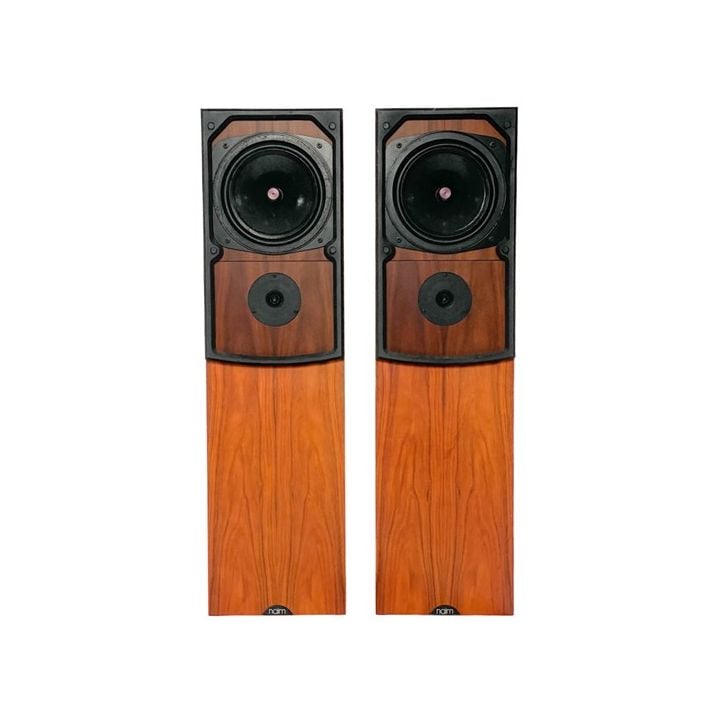

The Naim Credo is a classic two-way floorstanding loudspeaker designed to deliver exceptional pace, rhythm, and timing (PRaT). Featuring a unique separate-box cabinet construction, the Credo physically decouples the mid/bass driver box from the lower cabinet to minimize mechanical resonance and cross-talk interference. Equipped with Naim’s custom drivers—a 200mm mid/bass unit and a 19mm dome tweeter—it provides a tight, controlled bass response alongside remarkable clarity. Designed to operate passively or actively via external crossovers, it remains a favorite among hi-fi enthusiasts.
| Specification | Detail |
|---|---|
| System Type | 2-way, 2-driver floorstanding loudspeaker |
| Enclosure Design | Decoupled two-box cabinet (boundary loaded) |
| Frequency Response | 35Hz – 20kHz ±3dB |
| Sensitivity | 89 dB SPL (1W/1m) |
| Nominal Impedance | 6 Ω minimum |
| Power Handling | 90 Watts continuous |
| Bass/Midrange Driver | 1x 200mm (8 in) custom driver |
| Tweeter | 1x 19mm (0.75 in) dome tweeter |
| Crossover Modes | Passive (internal rear-mounted) or Active (external IXO / SNAXO) |
| Dimensions (H × W × D) | 875 × 240 × 270 mm (34.4 × 9.4 × 10.6 in) |
