The IMF Electronics TLS 80 overview
The IMF Electronics TLS 80 is widely regarded as one of the most iconic "big" British loudspeakers of the 1970s. It was the consumer version of IMF’s Professional Monitor and is famous for its uncompromising use of Transmission Line (TL) loading, which allows it to reproduce bass frequencies with a depth and "realism" that most modern speakers struggle to match.
The Design Philospohy

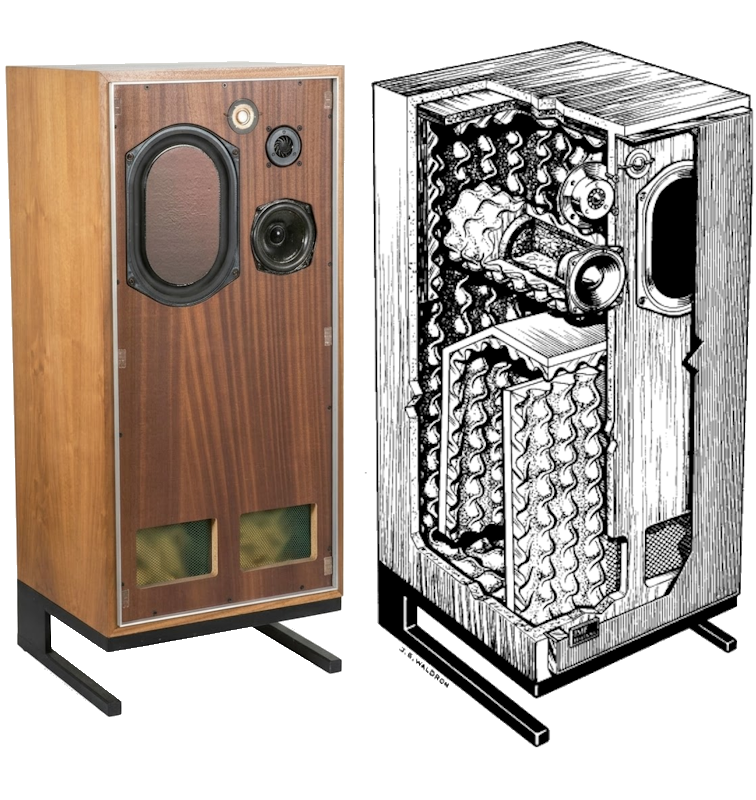

The core of the TLS 80’s identity is the transmission line. Unlike a standard bass reflex box that uses a simple port to boost bass, the TLS 80 uses a long, folded internal tunnel filled with specific damping materials (like long-hair wool and foam).
Acoustic Benefit: This "loads" the bass driver, extending its reach down to 20 Hz while minimizing the distortion and "boominess" found in cabinet resonances.
Result: The bass is often described as "felt rather than heard," mimicking the physical sensation of a live organ or a kick drum in a concert hall.
Key Performance Features
Perspective Control: Most units feature a 3-position switch on the back ($+, 0, -$). This allows the listener to tailor the mid-band energy—"moving" the soundstage forward or backward to suit the room or personal preference.

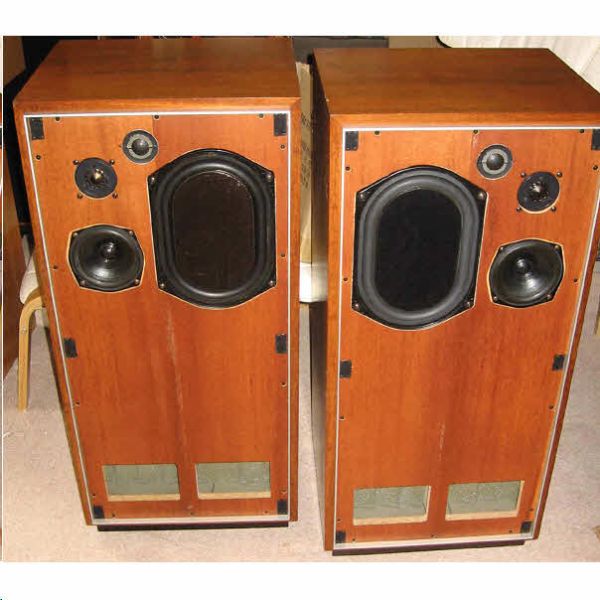

Mirror-Image Pairs: IMF produced these in matched left/right pairs. This was a high-end detail at the time, ensuring a stable and symmetrical stereo image.
Efficiency: They are surprisingly efficient for their size (rated around 96–98 dB), but they are known "current-hungry" speakers. They perform best when paired with high-quality, high-current vintage or modern amplifiers.
The IMF TLS80 Specifications
| Category | Details |
|---|---|
| Dimensions | 38½" x 16" x 18" wide (98 cm x 41 cm x 46 cm) Overall height on stand: allow 42" (107 cm) |
| Drive Units | Bass: 11¾" x 8¼" (30 cm x 21 cm) flat polystyrene unit loaded by transmission line Midrange: 6" (15 cm) plastic cone in separate line Tweeter: 1¾" (4.5 cm) diaphragm high gauss tweeter Super-tweeter: ¾" (2 cm) chemical dome |
| Crossover | Electrical four way at 350 Hz, 3 kHz and 13 kHz |
| Frequency Range | 20 Hz to beyond audibility |
| Matching Impedance | 4-8 ohms |
| Efficiency | 98 dB (Measured via Pink Noise at 1 metre for 40 watts; dependent on Control setting) |
| Driving Power Requirements | 40 - 100 watts |
| Control | TILT: see graph |
| Dispersion | See Polar Diagram |
