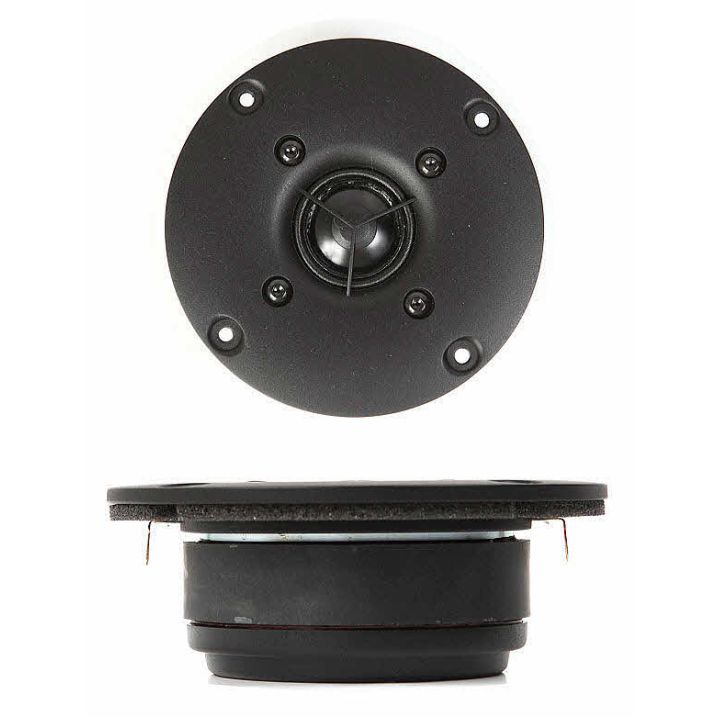

SB Acoustics SB26ADC-C000-4 tweeter, Phase optimised metal dome, copper cap pole piece, damped rear chamber, Fs 680Hz, 90dB. Superb off-axis response, excellent highly linear response.
ON BACK ORDER. REGRET NO DELIVERY DATE AVAILABLE
SB Acoustics SB26ADC-C000-4 tweeter is another SB Acoustics tweeter well known for a superb off-axis response and excellent extended highly linear response response.
It has an aluminum dome with diffuser, 1” voice coil, Copper Cap pole piece, and a 100mm OD face plate. The rear chamber is specially designed to give a low Fs (680 Hz) and reduce internal back reflections.
Superb value.
Priced individually, supplied in pairs.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Driver Fs | 680 Hz |
---|---|
Driver Impedance | 4 ohm |
Driver Power | 120W |
Driver Qes | 2 |
Driver Qms | 2.9 |
Driver Qts | 1.2 |
Driver Rdc | 3.20 ohm |
Driver Sens SPL | 90 dB |
Driver Vas | - |
