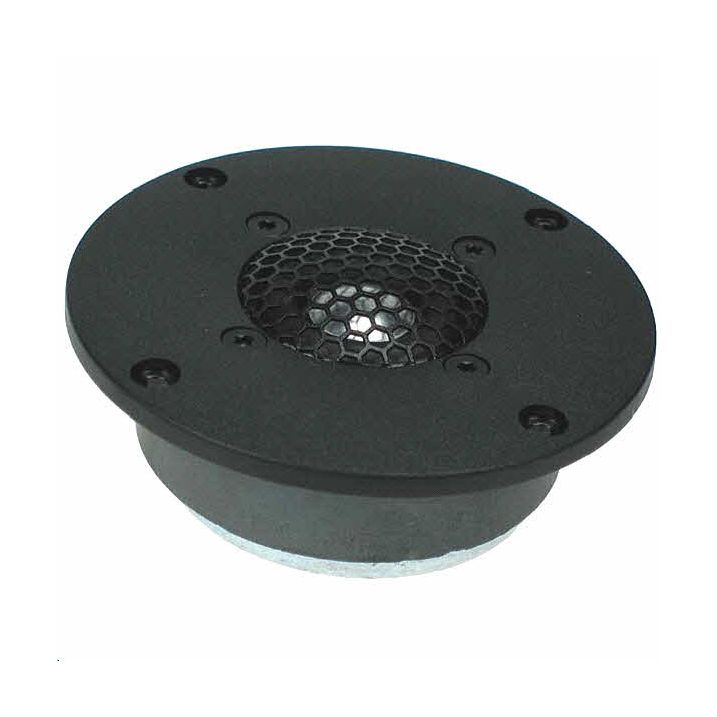

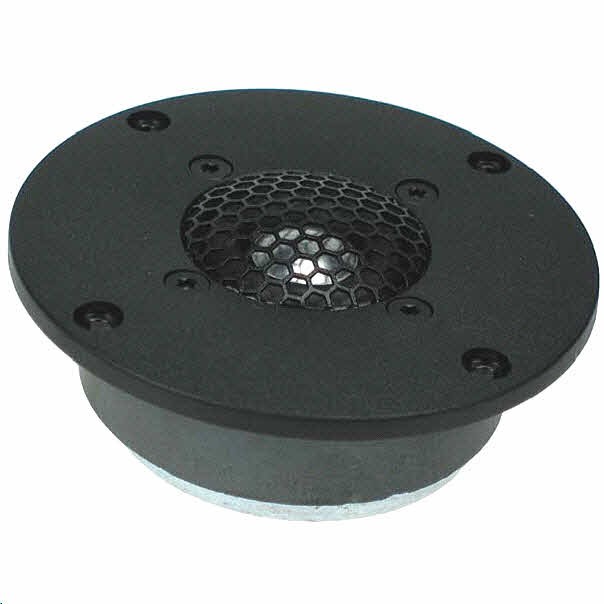

Seas 22TAF/G H1283-06 Tweeter. 19mm 6ohm HD aluminum/magnesium dome tweeter with 1” dome LF response.
A product datasheet can be downloaded from the Product Description page.
Seas 22TAF/G H1283-06 Tweeter is a Prestige Series19mm 6ohm High Definition Aluminum/Magnesium dome tweeter with a wide coated fabric surround combining the high frequency dispersion of a ¾” dome with the low frequency characteristics of a 1” dome.
This unit is fitted with an Aluminium/magnesium dome for low mass and high rigidity and stability, which is protected by an acoustically open Hexagrid. The precoated Sonomex surround gives low resonance frequency, high consistency and excellent stability against variations in air humidity.
The chassis is moulded from a stiff and stable glass fibre reinforced polymer material, and its front design offers optimum radiation conditions. Large ferrite magnet for high efficiency, and good transient response.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
Driver Fs | 1100 Hz |
---|---|
Driver Impedance | 6 ohms |
Driver Power | 80 |
Driver Qes | - |
Driver Qms | - |
Driver Qts | - |
Driver Rdc | 4.90 ohms |
Driver Sens SPL | 92.0 dB |
Driver Vas | - |
SEAS Driver Series | Seas Prestige |
