NEW - IN STOCK FOR IMMEDIATE DELIVERY

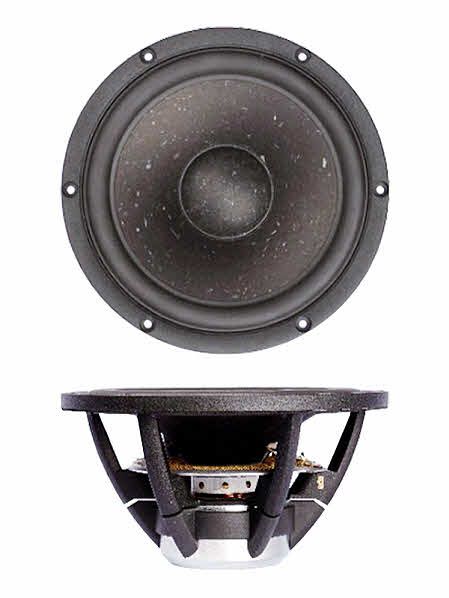

SB Acoustics Satori MW19P-8 Midwoofer is a State of The Art Neodymium magnet 7.5" 8ohm midwoofer, featuring a proprietary Papyrus Paper cone, a high efficiency soft low damping optimum response rubber surround, BiMax spider, and a glassfibre former with copper sleeve pole piece.
Fitted with a 39mm voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for lower distortion. Fs 32.5Hz, and a fabulous level wide response curve.level midrange response, a very flexible unit. For an 4 ohm version, see MW19P-4
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Nominal Impedance||8 ohm|
|Nominal Power RMS||70W|
|Vas ( l)||48 l|
|Nominal Free Air Resonance Fs||32.50 Hz|
|Sensitivity (2.83V/1m)||89.000 dB|
|Nominal Rdc||6.00 ohm|
