IN STOCK FOR IMMEDIATE DELIVERY

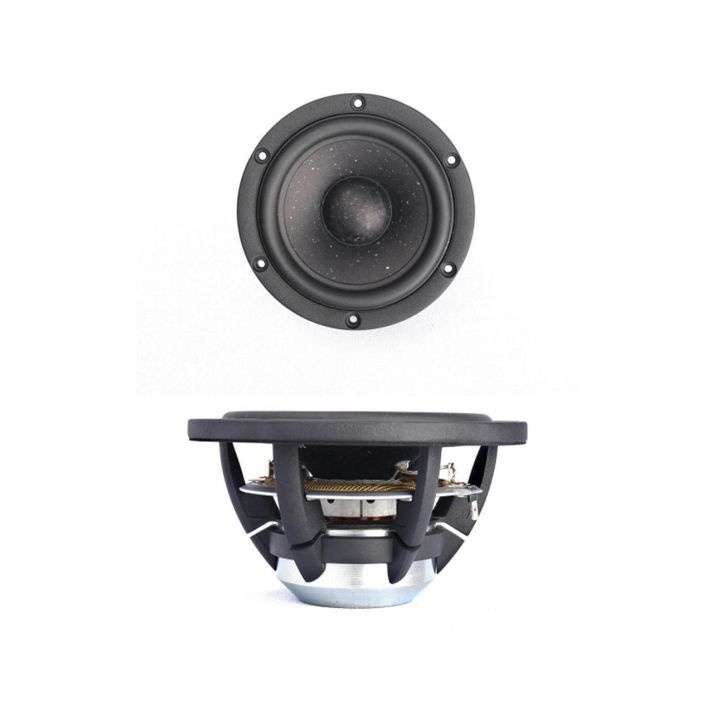

SB Acoustics SB Acoustics Satori MR13P-4 Midrange is a simply outstanding Neodymium magnet 5" 4ohm midrange, featuring a supplemented proprietary Papyrus Paper cone, a specially designed soft low damping optimum response rubber surround, BiMax spider, and a glassfibre former with copper sleeve pole piece.
Fitted with a 1.25" voice coil. Very open cast frame for minimal reflections. Extended copper clad pole piece for really low distortion. Fs 41Hz, and a class-leading level wide response curve. Extended level midrange response, a very flexible unit. For an 8 ohm version, see MRW13P-8
Priced individually, supplied in pairs.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Nominal Impedance||4 ohm|
|Nominal Power RMS||50W|
|Vas ( l)||19.40 l|
|Nominal Free Air Resonance Fs||41 Hz|
|Sensitivity (2.83V/1m)||91.00 dB|
|Nominal Rdc||3.30 ohm|
