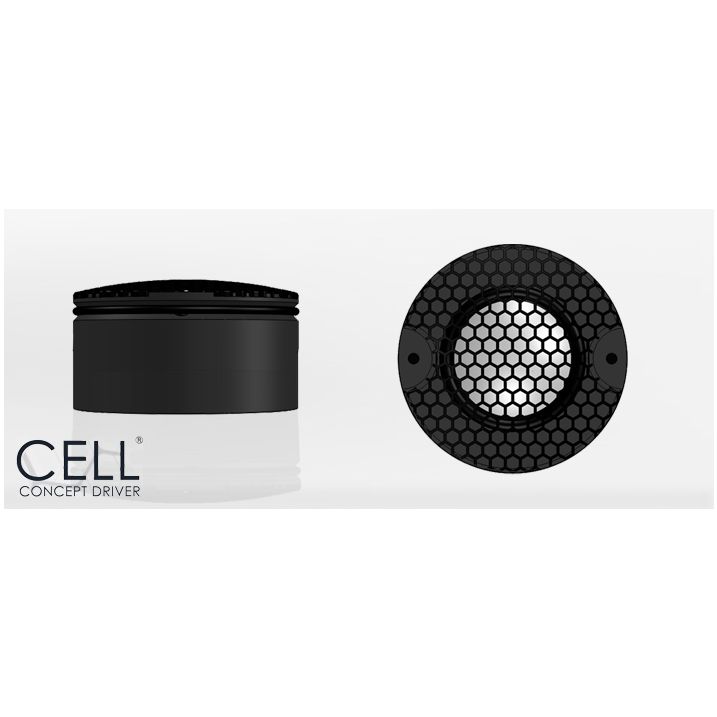

Accuton C30-6-358 1.2'' Ceramic Cell Tweeter
The C30-6-358 is a 1.2 inch tweeter with ultra hard ceramic dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required.
The C30-6-358 is part of the Cell Concept series of drivers from Accuton. The Cell Concept is a unique approach to driver design that uses a series of small cells to create a large diaphragm area. This allows for greater control over the diaphragm movement and results in improved sound quality
The C30-6-358 is a 1.2 inch tweeter with ultra hard ceramic dome in a 58 mm body. A proprietary clamping technique provides easy mounting and adapting to individual frontplates. As the dome breakup is above the audible range and well damped, no dome cutouts are required.
Highlights
- full featured cell concept
- underhung motor design
- vented vc & pole piece
- no ferrofluid filling
- 1800 HZ - 25000 HZ
The Accuton C30-6-358 features an unique FEA optimized underhung motor design with vented titanium voice coil former and double neodymium magnet guarantees low energy storage, excellent heat transfer and high excursion capability for low power compression and ultra low distortion around 0.07% @ 2.83V and 0.5% max. @ 110dB. The new designed soft fabric surround centers the moving parts with improved linearity.
Delivery is normally 10-14 working days if not in stock. Supplied in pairs (2 units) only. Free UK Delivery.
A Product Datasheet and a Dimensions Datasheet are available below.
| Accuton Driver Series | Cell Concept Tweeter |
|---|---|
| Driver Fs | 810 Hz |
| Driver Impedance | 6 ohm |
| Driver Power | 120 W |
| Driver Qes | 0.81 |
| Driver Qms | 2.54 |
| Driver Qts | 0.62 |
| Driver Rdc | 5.80 ohm |
| Driver Sens SPL | 93.5 |
| Driver Vas | - |
