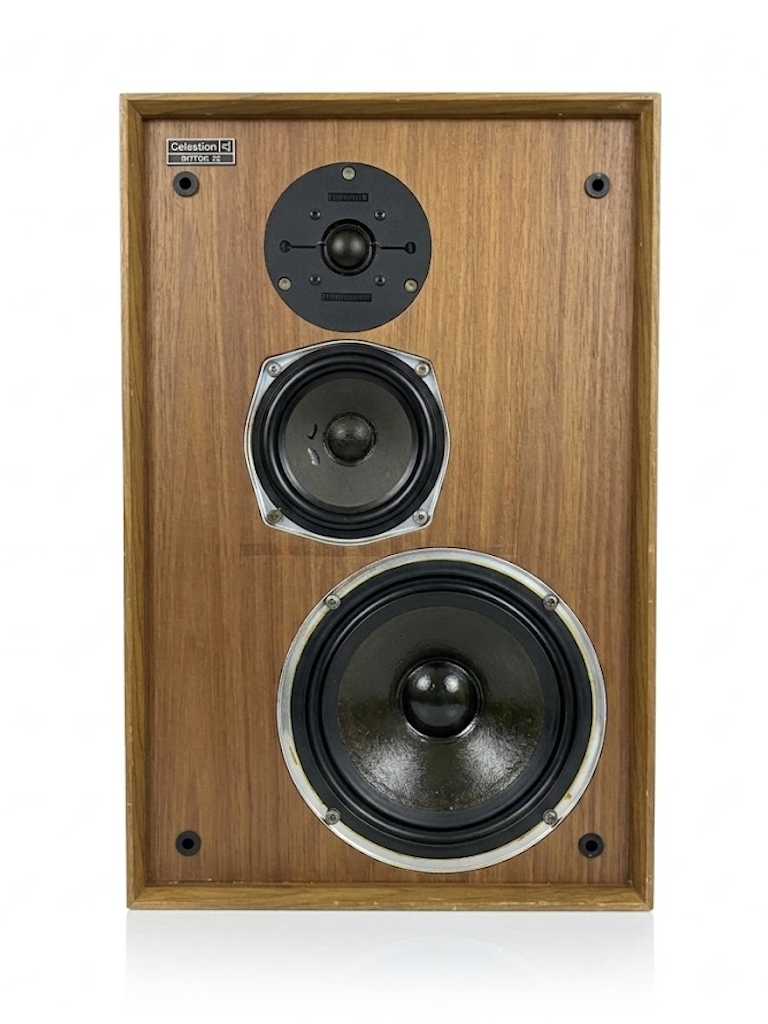

Celestion Ditton 22 loudspeakers—a classic 3-way sealed design from the late 1970s—is one of the most rewarding vintage audio projects. Known for their warm British voicing, rich midrange, and smooth high frequencies, bringing a set back to factory specification (or better) primarily comes down to four main restoration stages.
Specification
Technical Details
System Type
3-Way Infinite Baffle (Sealed Enclosure)
Frequency Response
30 Hz – 28 kHz (Overall); 45 Hz – 20 kHz (±3 dB)
Power Handling
80 Watts RMS (Continuous Music Power)
Recommended Amplifier
10 Watts to 80 Watts RMS into 8 Ohms
Nominal Impedance
4 to 8 Ohms (Amplifier compatible)
Sensitivity / Efficiency
87 dB SPL (1W input @ 1 meter)
Crossover Frequencies
500 Hz & 3,000 Hz (3rd order networks)
High-Frequency Driver (HF)
1x 19mm (3/4") HD1000 Soft Dome Tweeter
Midrange Driver (MF)
1x 130mm (5") Treated Paper Cone Driver with Roll Surround
Low-Frequency Driver (LF)
1x 250mm (10") High-Compliance Woofer with Durable Rubber Surround
Cabinet Construction
High-Density Particle Board, Internal Bituminous Damping & Fiber Fill
Finishes Available
Natural Teak or Hand-Rubbed Walnut Real-Wood Veneer
Dimensions (H x W x D)
510 x 330 x 270 mm (20.1" x 13.0" x 10.6")
Weight
12.5 kg (27.5 lbs) per cabinet
Replacement Components
Seas 19TFF1 H0737 Tweeter - Celestion HF 2000 replacement
Ditton 22 Replacement Capacitor Set
The Missing Component
When servicing vintage Celestion drivers, it is important to note that original factory technical specifications for many of these components were never published.
As a high-volume manufacturer during this era, Celestion’s production model was optimized for large-scale original equipment supply cycles. Consequently, the company did not prioritize the release of public technical data sheets or third-party component-level repair support for its legacy driver range.
We do not offer a replacement for the bass drive units.
