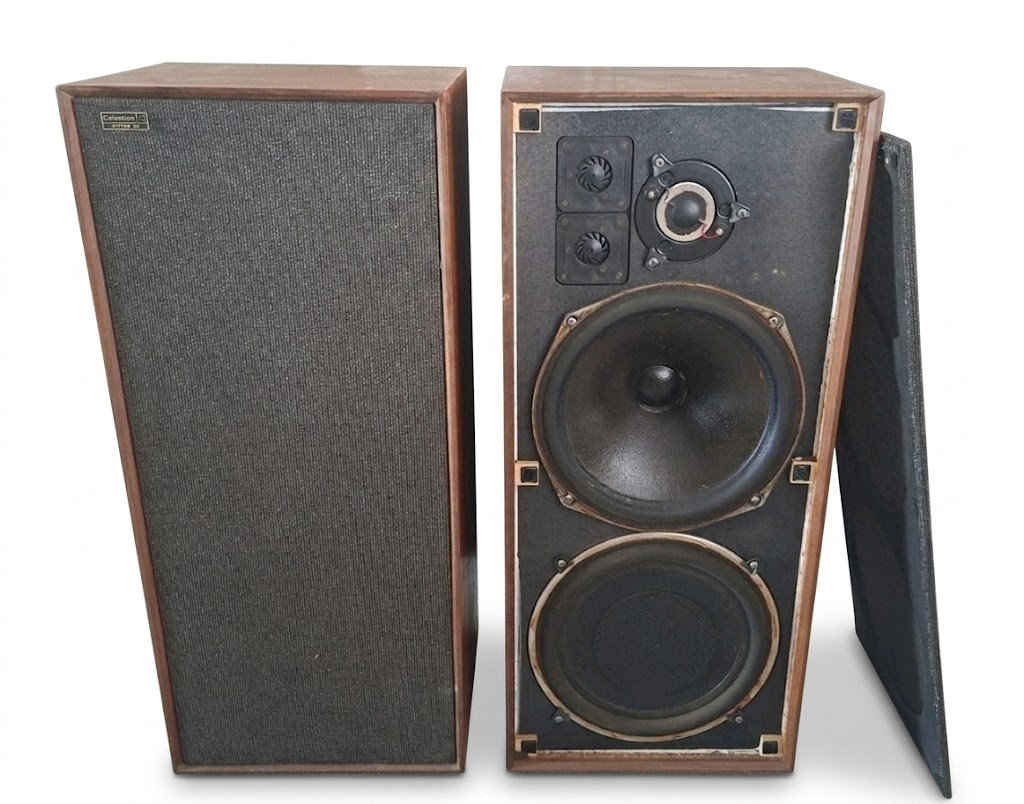

Celestion Ditton 25
Type: 3-way closed-box floorstanding speaker with a passive bass radiator (ABR).
Drivers: 300 mm woofer, 300 mm ABR passive cone, dual 38 mm HF-1300 midrange domes, and a 35 mm HD-2000 tweeter.
Handling & Specs: 60W nominal power, 90 dB sensitivity, and an 8 Ohm impedance.
The Missing Component
When servicing vintage Celestion drivers, it is important to note that original factory technical specifications for many of these components were never published.
As a high-volume manufacturer during this era, Celestion’s production model was optimized for large-scale original equipment supply cycles. Consequently, the company did not prioritize the release of public technical data sheets or third-party component-level repair support for its legacy driver range.
We do not offer a replacement for the bass drive units.
Celestion
Ditton 25 High-Fidelity LoudspeakerClassic 1970s studio monitor-grade loudspeaker. Features a 3-way, 5-driver configuration in a sealed enclosure paired with an Auxiliary Bass Radiator (ABR).
Audio Performance
| Frequency Response | 20 Hz – 26 kHz |
| Crossover Points | 2.6 kHz, 9.0 kHz |
| Nominal Impedance | 4 to 8 Ohms |
| Power Handling | 60W RMS (120W Peak) |
| Sensitivity | 86 dB (1W / 1m) |
Cabinet & Physical
| Enclosure Type | Sealed w/ ABR Radiator |
| Finish Options | Teak / Walnut Veneer |
| Dimensions | 810 × 360 × 280 mm |
| Weight | 24.0 kg (53 lbs) per unit |
| Origin | Ipswich, England |
Drive Unit Array
High Frequency Tweeters
2× HF1300 Mk II Dome Tweeters — Arrayed for extra wide horizontal dispersion.
Super High Frequency
1× HF2000 Ultra-High Frequency Dome Tweeter — Extends upper harmonics beyond audibility.
Woofer & ABR
1× 12" Long-Throw Bass Driver + 1× 12" Passive Radiator for tight sub-bass down to 20Hz.
