Seas 19TFF1 H0737 Tweeter - Celestion HF 2000 replacement
|Seas Driver Range||Seas Prestige|
|Nominal Impedance||8 ohms|
|Nominal Power RMS||90|
|Vas ( l)||-|
|Nominal Free Air Resonance Fs||1700 Hz|
|Sensitivity (2.83V/1m)||88.0 dB|
|Nominal Rdc||6.20 ohms|

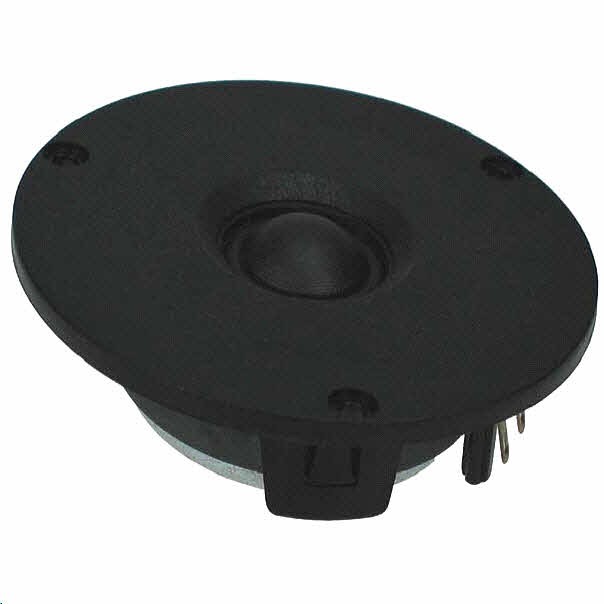

Seas 19TFF1 H0737 Tweeter. A traditional replacement for Celestion HF2000 and the HF2001, and SEAS 19TFFD ( reuse bucking magnet) replacement, this is a 19mm Prestige Series High Fidelity dome tweeter with extremely smooth and extended frequency response. A precoated Sonotex fabric diaphragm and suspension allows for very tight production tolerances and high consistency.
The injection moulded chassis in high grade glass fibre reinforced plastic keeps the moving parts in perfect alignment and provides good coupling to the cabinet.
Voice coil windings are immersed in ferrofluid increasing short term power handling capacity and reducing compression at high power levels.
We recommend replacing in pairs.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
