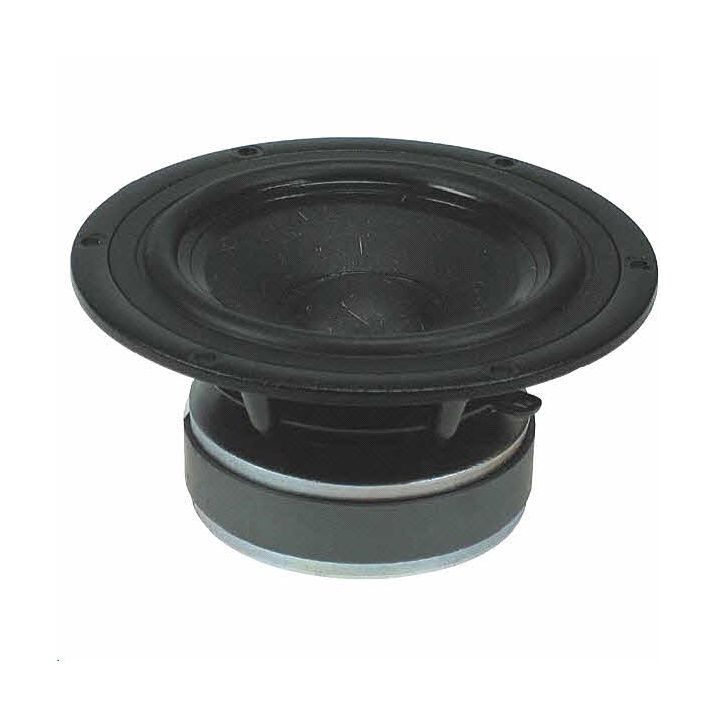

Seas ER15RLY H1455-08 MidWoofer - Prestige Series
Seas ER15RLY H1455-08 MidWoofer. Seas Long Throw edge coated 5" Reed/ Paper cone, very smooth extended response. Flexible use unit, popular with OEM and speaker builders.
A product datasheet can be downloaded from the Product Description page.
Seas ER15RLY H1455-08 Midrange is a renowned Seas Long Throw MidWoofer Midrange widely used by both OEM and speaker builders alike, with a edge coated 5" reed/ paper cone giving the very smooth extended response for which this classic drive unit is well known.
The large magnet motor combined with a very long light weight 26mm copper clad aluminum voice coil allows very good excursion (Xmax 20mm p/p) , low distortion and excellent transient responses.
An extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment, the large windows in the basket both above and below the spider reducing sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
| Driver Fs | 44 Hz |
|---|---|
| Driver Impedance | 8 ohms |
| Driver Power | 60 |
| Driver Qes | 0.41 |
| Driver Qms | 1.55 |
| Driver Qts | 0.32 |
| Driver Rdc | 5.60 ohms |
| Driver Sens SPL | 87.5 dB |
| Driver Vas | 15 |
| SEAS Driver Series | Seas Prestige |
