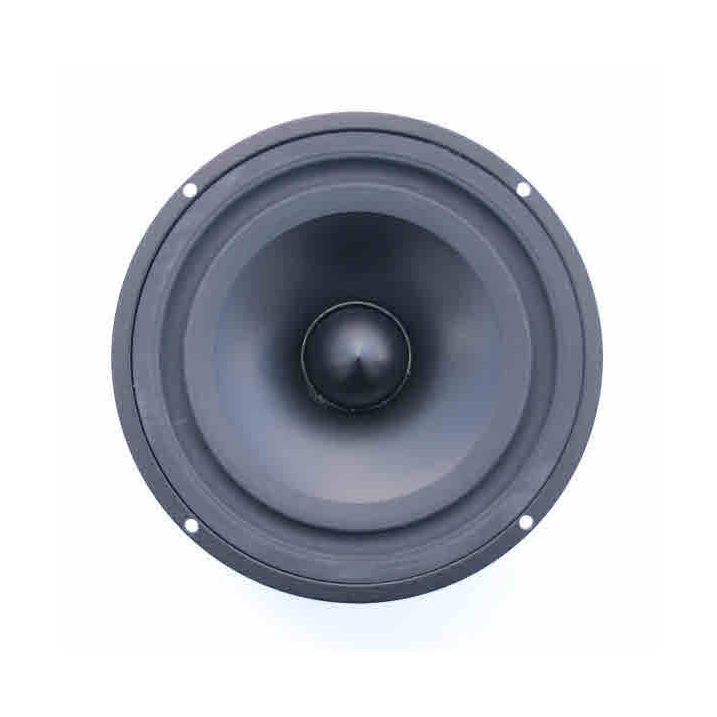

Seas P17RE/P H0528-08 Woofer is a high power Seas Woofer with a 6.5" polypropylene cone, Phase Plug and High Loss Rubber Surround giving a very smooth and extended response.
The large magnet motor combined with a 39mm voice coil gives low distortion and good transient responses. The phase plug reduces compression due to temperature variations in the voice coil, eliminates resonances that would occur in the volume between the dust cap and the pole piece and increases the long term power handling capacity.
An extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment, the large windows in the basket both above and below the spider reducing sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Seas Driver Range||Seas Prestige|
|Nominal Impedance||8 ohms|
|Nominal Power RMS||100 Long Term, 250W Short Term|
|Vas ( l)||26.9|
|Nominal Free Air Resonance Fs||35 Hz|
|Sensitivity (2.83V/1m)||87.5 dB|
|Nominal Rdc||6.10 ohms|
