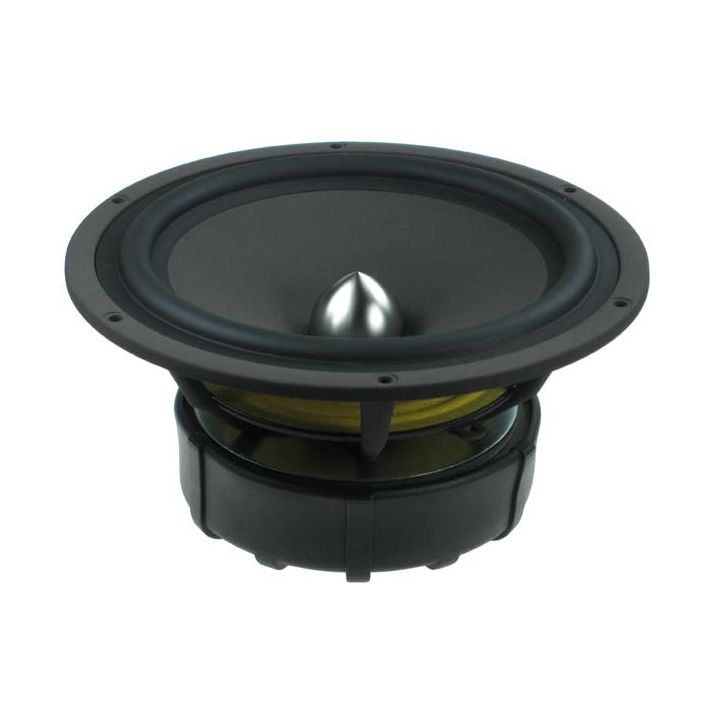

Seas W22NY001 E0045 Woofer is the world famous Seas Excel Woofer with a coated 8.5" Nextel coated paper cone with an adaptive rubber surround, giving an outstanding very smooth extended response.
The large magnet motor with a bumped back plate combined with a very long light weight 39mm copper clad aluminum voice coil gives excellent excursion (Xmax 22mm p/p) , low distortion and good transient responses.
Heavy copper rings mounted above and below the T-shaped pole piece significantly reduce non-linear and modulation distortion and increase overload margin.
An extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment, the large windows in the basket both above and below the spider reducing sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Seas Driver Range||Seas Excel|
|Nominal Impedance||8 ohms|
|Nominal Power RMS||90|
|Vas ( l)||72|
|Nominal Free Air Resonance Fs||33 Hz|
|Sensitivity (2.83V/1m)||90.0 dB|
|Nominal Rdc||6.10 ohms|
