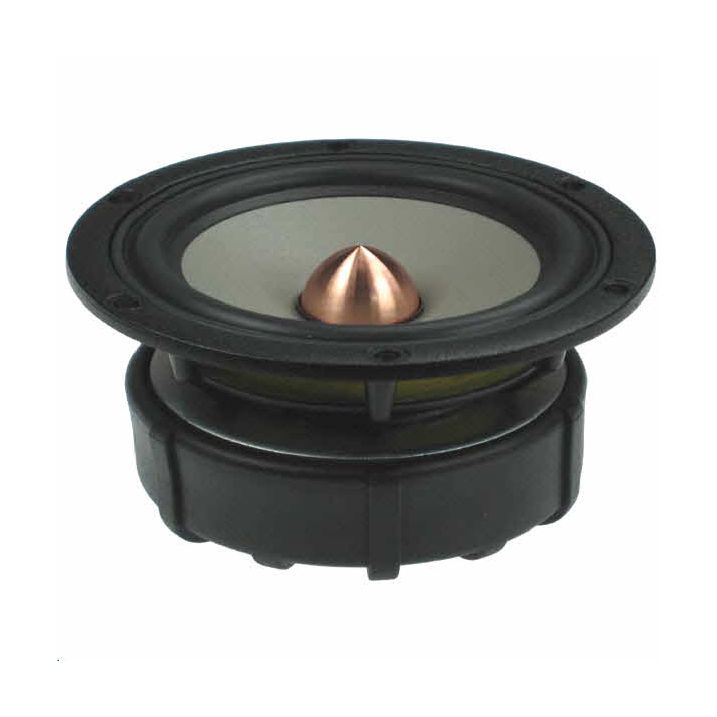

Seas W12CY001 E0021 Woofer/Midrange is the famous12cm 4.5" cone Excel Series woofer/midrange unit, with a stiff light precision cast and surface treated magnesium cone coupled to a natural rubber surround showing no sign of edge resonances and giving superb bass and midrange detail.
Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin. Copper plated top and bottom plates and a solid copper phase plug enhance the performance of the copper rings and improve heat conduction away from the pole piece. An extra large magnet system is used for good sensitivity and transient response.
Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
|Seas Driver Range||Seas Excel|
|Nominal Impedance||8 ohms|
|Nominal Power RMS||70|
|Vas ( l)||6|
|Nominal Free Air Resonance Fs||45 Hz|
|Sensitivity (2.83V/1m)||84.0 dB|
|Nominal Rdc||5.6 ohms|
