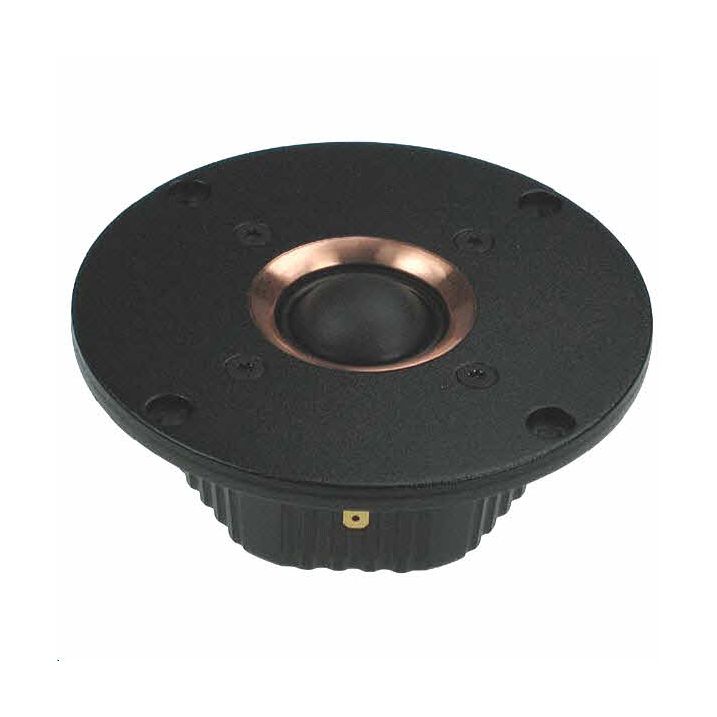

Seas T25CF002 E0011-06 Millennium Tweeter - Excel Series
|Seas Driver Range||Seas Excel|
|Nominal Impedance||6 ohms|
|Nominal Power RMS||90|
|Vas ( l)||-|
|Nominal Free Air Resonance Fs||500 Hz|
|Sensitivity (2.83V/1m)||89.0 dB|
|Nominal Rdc||4.60 ohms|
Seas T25CF002 E0011-06 Millennium Tweeter - Excel Series is world famous as undoubtedly one of the best 25mm fabric dome tweeters ever made. Specially selected by Seigfried Linkwitz for the legendary Orion DiPole Open Baffle speaker.
IN STOCK FOR IMMEDIATE DELIVERY
Discounted Full Orion Driver Sets and information pages from Linkwitz Labs are available here.
The star of the justifiably famous Seas Excel Series, it is powered by a novel HEXADYM Neodymium magnet system based on 6 radially magnetized NdFeB magnet blocks. The Millennium features efficient ventilation and damping of every potentially resonant cavity behind the dome, surround and voice coil. Moderate magnetic stray fields present no problems in AV installations.
A generously underhung voice coil ( + and - 0.5mm ) ensures low distortion even with low crossover frequencies, and this is combined with an optimally shaped and coated fabric dome diaphragm manufactured from SONOTEX for excellent performance and consistency.
Flexible lead-out wires ensure a good connection between voice coil and terminals. This arrangement also helps to prevent lead breakage due to the large excursions encountered when low crossover frequencies are used.
A 6.0 mm injection moulded zinc front plate with a very slight loading characteristic ensures linear frequency response, and a stiff and stable connection to the cabinet. A substantial injection-moulded rear chamber made from zinc eliminates unwanted chamber all resonances and conducts heat away from the magnet system.
A true Audiophile product.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
