SEAS Exotic X1-08 F8 8 Ohms Full Range Zoom

SEAS Exotic X1-08 F8 8 Ohms Full Range

Be the first to review this product

SKU: SEAS Exotic X1-08 F8

SEAS Exotic X1-08 F8 8 Ohms Full Range, £409.95 Excl. VAT, FREE UK DELIVERY. Smooth response, high sensitivity, low distortion..


A product datasheet can be downloaded from the Product Description page.   FREE UK DELIVERY.


AVAILABLE TO ORDER ONLY. DELIVERY NORMALLY 2-3 WEEKS

Availability: In stock

Excl. Vat: £419.95 Incl. Vat: £503.94
Product Description

    Details

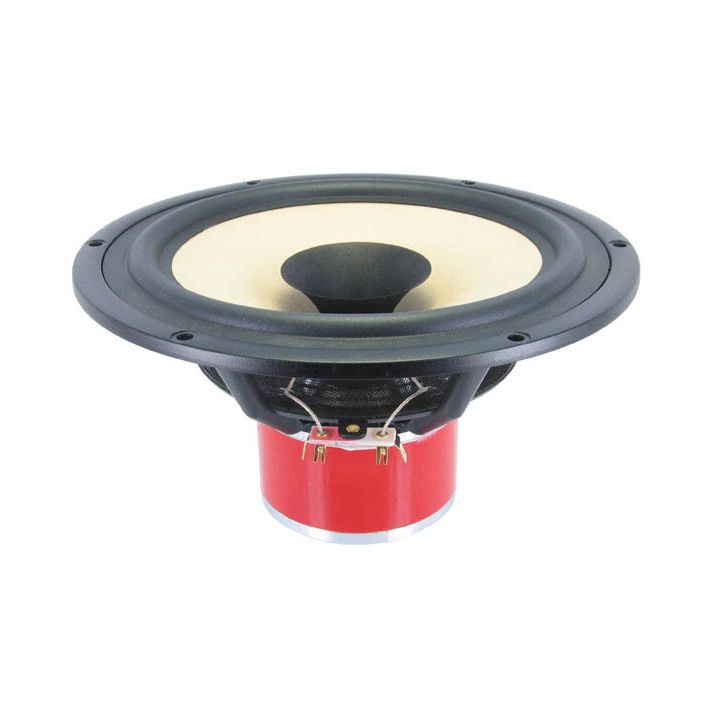

    The SEAS Exotic X1-08 F8 is a full range 8 Ohm 8-inch driver designed for smooth, wide frequency response, high sensitivity, and low distortion.

    The special paper cone is embedded with papyrus fibres to optimize stiffness and damping. An optimally matched whizzer cone extends high frequency response beyond 10kHz. A special foam rubber surround reduces mass by 40% compared with conventional rubber surrounds, resulting in higher sensitivity and excellent damping properties.

    A new proprietary spider design dramatically improves the performance of this critical suspension part, combining an extremely open weave with a new resin formulation, resulting in all noises normally created by the friction of the threads rubbing together being virtually eliminated. Additionally, the open weave is highly acoustically transparent, minimizing the reflections and resonances associated with conventional spider designs.

    A high temperature copper voice coil is wound on a rigid, non-conductive glass fibre former.

    The Alnico V ring magnet system gives high sensitivity, excellent stability, and low distortion. A copper cap on the pole piece, combined with an under hung voice coil reduces nonlinear distortion to a minimum. New H2 lead-out wires eliminate noise due to roping and resonances.

    AVAILABLE TO ORDER ONLY. DELIVERY NORMALLY 2-3 WEEKS

    A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).

    Seas Exotic X1-08 F8 8 Ohms Datasheet

Additional Information

    Additional Information

    Seas Driver Range Seas Exotic
    Nominal Impedance 8 Ohms
    Nominal Power RMS 35/100W
    Vas ( l) 143 l
    Nominal Free Air Resonance Fs 32 Hz
    Sensitivity (2.83V/1m) 93 dB
    Nominal Rdc 5.7 Ohms
    Qes 0.5
    Qms 4.2
    Qts 0.44
