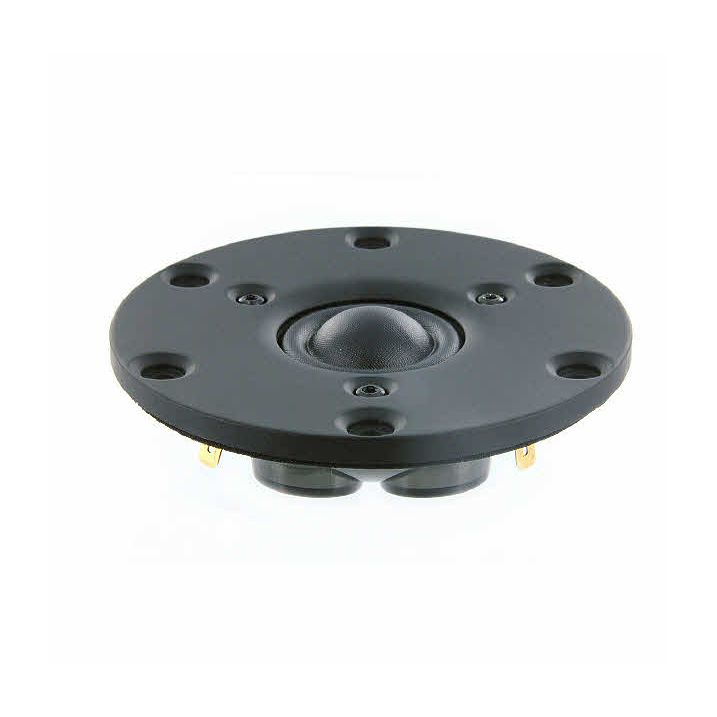

Scanspeak D3004/660000 Illuminator Tweeter, a outstanding member of the superb Illuminator Range. Stunning design with superb vocal rendition and excellent imaging. 6 mounting holes. Black die-cast rubber painted aluminum face plate, 1" textile dome, large roll surround, 26mm vc, all for wide dispersion. Low Fs, rear chamber design that eliminates reflections and resonances.
This tweeter features the Air-Circ “SD-2" Neodymium 6 magnet symmetric drive motor system. Excellent wide dispersion from the large roll surround. Fully comparable both in sound output and quality to the Revelator ranges.
Delivery is normally 7-10 working days if not in stock. Supplied in pairs (2 units) only.
A Product Datasheet is available below.
|Scanspeak Range||Scanspeak Illuminator|
|Nominal Impedance||4 ohms|
|Nominal Power RMS||150W|
|Vas ( l)||0.02 l|
|Nominal Free Air Resonance Fs||470 Hz|
|Sensitivity (2.83V/1m)||91.5 dB|
|Nominal Rdc||3.6 ohm|
