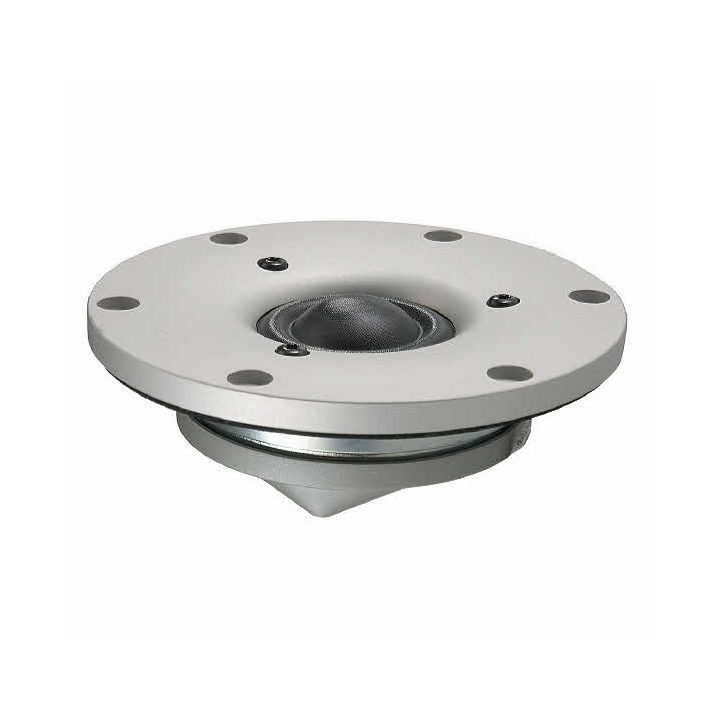

Scanspeak D2904/710002 Revelator tweeter, a member of the world-famous premium Revelator Range. Silver anodised and machined aluminium face plate, 6 mounting holes.
This tweeter features a newly updated optimised coated textile dome, non-resonant Aluminum multiple facet chamber, low compression, all with a “SD-2" Neodymium large magnet symmetric drive motor system. Excellent wide dispersion and very low distortion. Outstanding frequency response to 40KHz bandwidth with excellent phase and transient response. Good smooth low-end roll-off.
Delivery is normally 7-10 working days if not in stock.
A Product Datasheet is available below.
|Scanspeak Range||Scanspeak Revelator|
|Nominal Impedance||4 ohms|
|Nominal Power RMS||150W|
|Vas ( l)||0.02 l|
|Nominal Free Air Resonance Fs||520 Hz|
|Sensitivity (2.83V/1m)||94.4 dB|
|Nominal Rdc||3.7 ohm|
