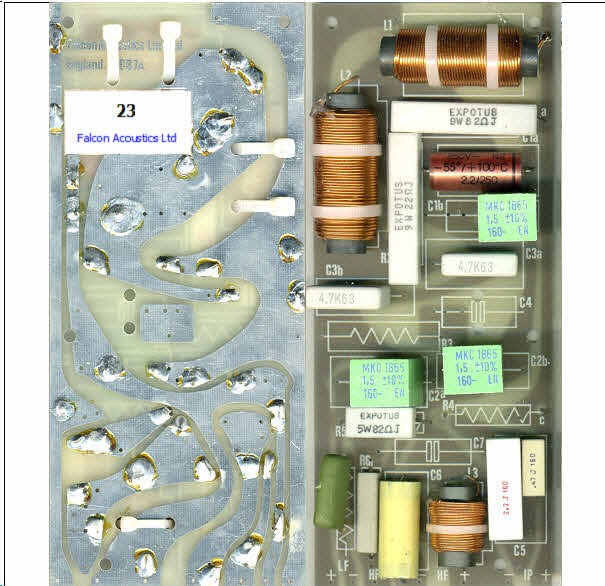

LS3/5a CROSSOVER 15 OHM KEF B110 SP1003 T27 SP1032. CROSSOVER 23
Double click on above image to view full picture
More Views
Additional Information
| System | LS3/5a, Falcon Mini Monitor, KEF B110A KEF T27 SP1032 |
|---|---|
| Author/Publication | Falcon Acoustics |
| PCB No. | 7 |
Details
LS3/5a CROSSOVER 15 OHM KEF B110 SP1003 T27 SP1032, CROSSOVER 23. Complete network, similar in all essential details to the classic LS3/5A but with high tolerance ferrite inductors and resistive HF attenuation. All components are hand toleranced to 5% and capacitor pairs are opposite and equal value/tolerance matched for highest quality results.
As the B110 response changed during its production span there were changes in the crossover (C5/R2) to compensate (see LS3/5a Crossover History). We can supply the crossovers with the required values if you let us know on ordering the manufacture date of your B110 units through the Date B110’s Made box. If you leave this blank we will supply to May 1982 onwards specification.
Supplied with full updated instructions, circuit and pictures for easy assembly. Networks can be supplied as kits or pre-assembled unless shown supplied as kits only.
Many thousands in use all over the world!
Please allow an extra 7 days for delivery if buying pre-assembled. Price is for one crossover/network.
