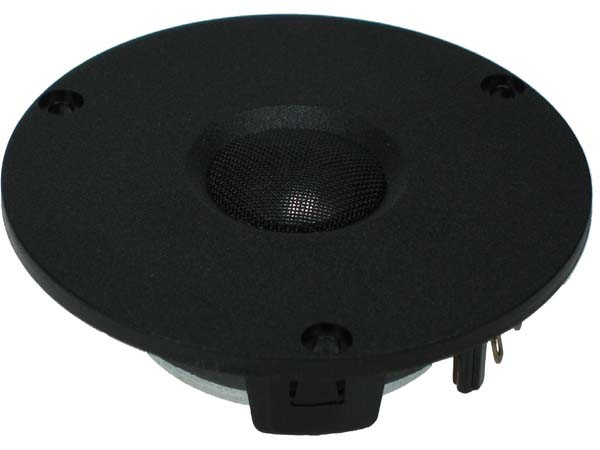

Seas 19TAF/G H0414-08 Tweeter - Prestige Series
Double click on above image to view full picture
More Views
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 8 ohms |
| Nominal Power RMS | 90 |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 1700 Hz |
| Sensitivity (2.83V/1m) | 88.0 dB |
| Nominal Rdc | 6.20 ohms |
| Qes | - |
| Qms | - |
| Qts | - |
Details
19mm High Fidelity aluminum dome tweeter with smooth, extended frequency response.
The aluminium diaphragm is suspended by a specially designed soft Sonotex surround which allows a low fundamental frequency. Injection moulded chassis in high grade glass fibre reinforced plastic keeps the moving parts in perfect alignment and provides good coupling to the cabinet.
A fine mesh grid protects the diaphragm and carries a phase plate which compensates for a slight axial roll off towards 20 kHz. Voice coil windings immersed in magnetic fluid increase short term power handling capacity and reduce the compression at high power levels.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
