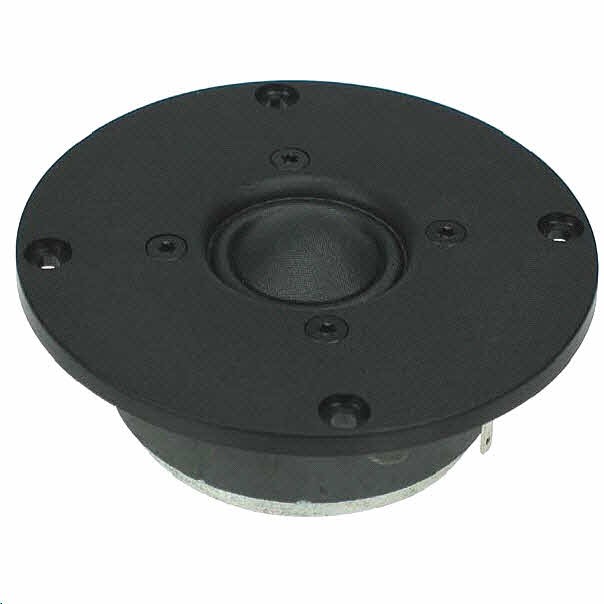

Seas 27TFF H0831-06 Tweeter - Prestige Series
Double click on above image to view full picture
More Views
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 6 ohms |
| Nominal Power RMS | 90 |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 1200 Hz |
| Sensitivity (2.83V/1m) | 92.0 dB |
| Nominal Rdc | 4.80 ohms |
| Qes | - |
| Qms | - |
| Qts | - |
Details
Seas 27TFF H0831-06 Tweeter is a Prestige Series 26mm 6ohm High Definition precoated fabric dome tweeter with an integrated wide surround, featuring a Sonolex precoated lightweight fabric diaphragm with high consistency and excellent stability against variations in air humidity.
The voice coil windings immersed in ferro fluid for increased power handling capacity and reduced compression at high power levels. An optimally damped cavity in the pole piece controls and slightly lowers the fundamental resonance.
The chassis is moulded from a stiff and stable glass fibre reinforced polymer material, and its front design offers optimum radiation conditions. Large ferrite magnet for high efficiency, and good transient response.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
