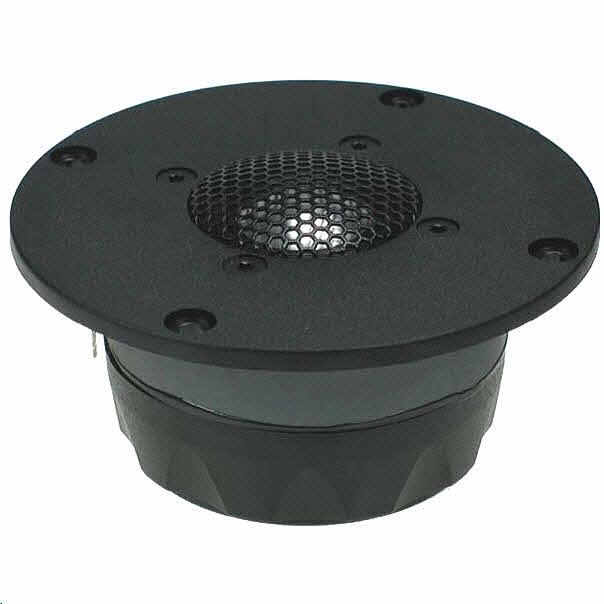

Seas 27TBFC/G H1212-06 Tweeter - Prestige Series
Double click on above image to view full picture
More Views
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 6 ohms |
| Nominal Power RMS | 90 |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 550 Hz |
| Sensitivity (2.83V/1m) | 91.5 dB |
| Nominal Rdc | 4.80 ohms |
| Qes | - |
| Qms | - |
| Qts | - |
Details
Seas 27TBFC/G H1212-06 Tweeter is a High Definition metal dome tweeter with a wide, soft polymer surround and a rear chamber, with a Aluminum/Magnesium alloy diaphragm. A Hexagrid protects the diaphragm, and supports a phase plate which compensates for a slight axial roll off towards 20 kHz.
A Sonomax surround is used for low resonance and excellent linearity.
Voice coil windings are immersed in ferrofluid increasing short term power handling capacity and reducing compression at high power levels.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
