Seas 22TFF H1280-06 Tweeter - Prestige Series
Double click on above image to view full picture
More Views
Additional Information
| Seas Driver Range | Seas Prestige |
|---|---|
| Nominal Impedance | 6 ohms |
| Nominal Power RMS | 90 |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 1050 Hz |
| Sensitivity (2.83V/1m) | 91.0 dB |
| Nominal Rdc | 4.90 ohms |
| Qes | - |
| Qms | - |
| Qts | - |
Details

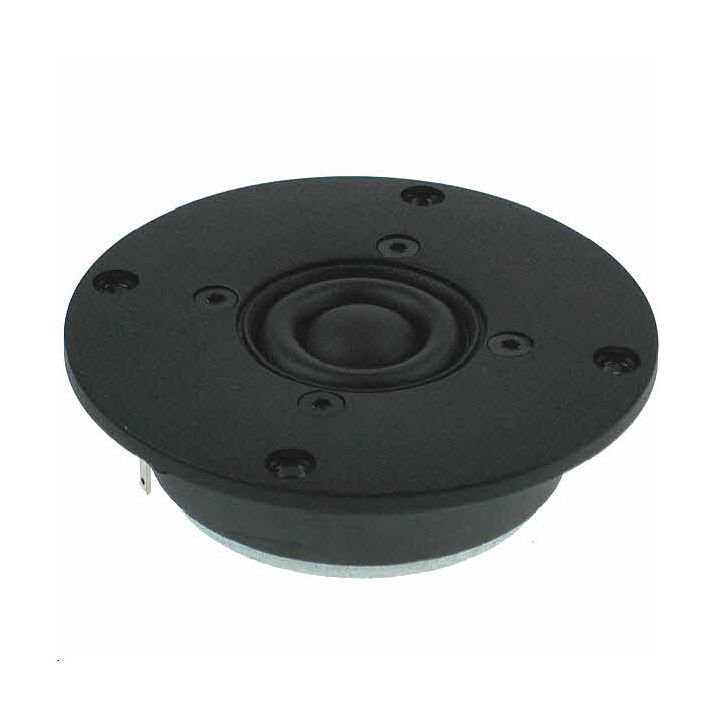

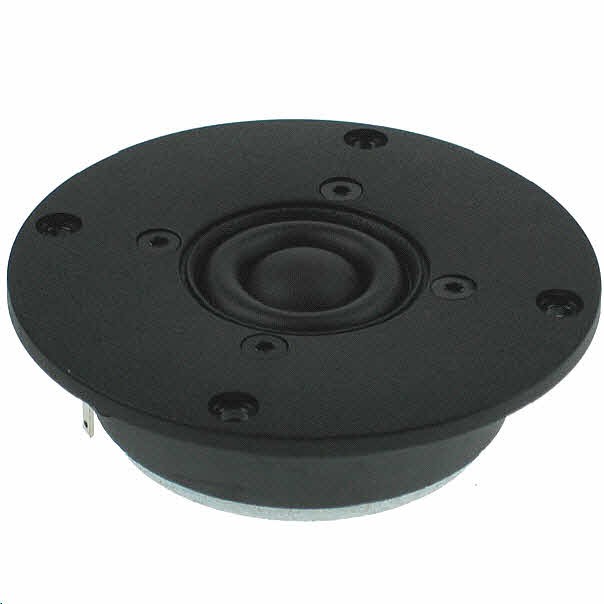

Seas 22TFF H1280-06 Tweeter is a Prestige Series19mm 6ohm High Definition soft dome tweeter with a wide surround combining the high frequency dispersion of a ¾” dome with the low frequency characteristics of a 1” dome.
The one-piece Sonomex dome and surround allows for very tight production tolerances and high consistency, with a smooth and extended frequency response. The voice coil windings immersed in ferro fluid for increased power handling capacity and reduced compression at high power levels.
The chassis is moulded from a stiff and stable glass fibre reinforced polymer material, and its front design offers optimum radiation conditions. Large ferrite magnet for high efficiency, and good transient response.
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
