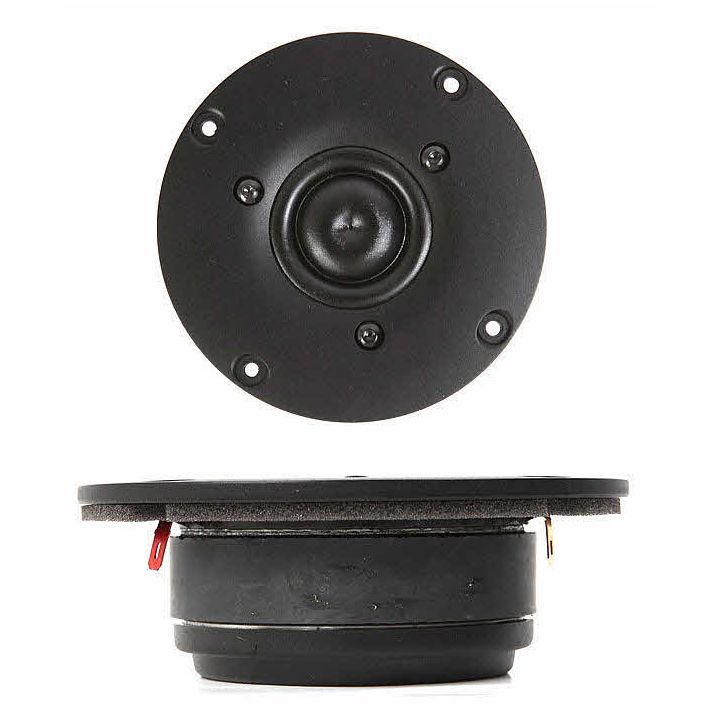

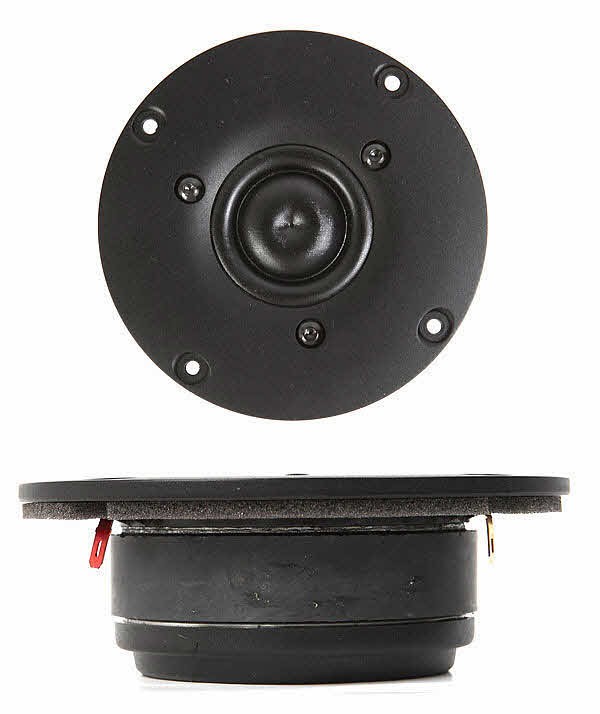

SB Acoustics SB29RDC-C000-4 Tweeter
Double click on above image to view full picture
More Views
Additional Information
| Nominal Impedance | 4 ohm |
|---|---|
| Nominal Power RMS | 100W |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 600 Hz |
| Sensitivity (2.83V/1m) | 93 dB |
| Nominal Rdc | 3.00 ohm |
| Qes | 0.90 |
| Qms | 2.20 |
| Qts | 0.65 |
Details
SB Acoustics SB29RDC-C000-4 tweeter is an outstanding SB Acoustics Ferrite magnet tweeter, featuring high sensitivity, low distortion characteristics from the stabilised dome centre. This tweeter is renowned for a superb off-axis response and excellent extended highly linear response response. Highly regarded and used by several OEM manufacturers.
It has a proprietary stabilised coated fabric ring dome, 1.2” voice coil, Copper Cap pole piece, and a 104mm OD face plate. The rear chamber is specially designed to give a very low Fs (600 Hz) and reduce internal back reflections.
Superb value. For a smaller 72mm faceplate design with Neodymium magnet, see SB29RDNC-C000-4
Priced individually, supplied in pairs. FREE UK DELIVERY
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
