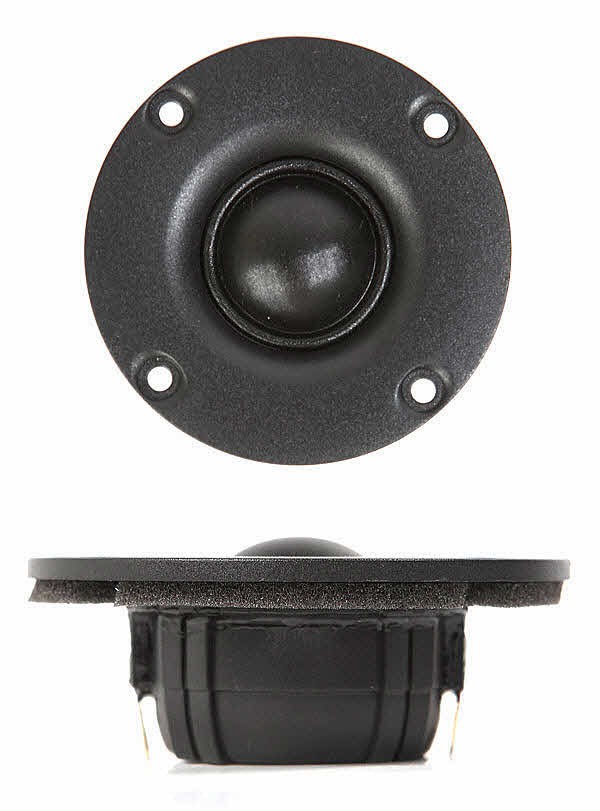

SB Acoustics SB26STCN-C000-4 Tweeter
Double click on above image to view full picture
More Views
Additional Information
| Nominal Impedance | 4 ohm |
|---|---|
| Nominal Power RMS | 120W |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 950 Hz |
| Sensitivity (2.83V/1m) | 92 dB |
| Nominal Rdc | 3.20 ohm |
| Qes | 2.00 |
| Qms | 1.80 |
| Qts | 0.90 |
Details
SB Acoustics SB26STCN-C000-4 tweeter has a Neodymium magnet (unusual in this price range), Copper Cap pole piece, coated textile dome, 1” voice coil and a small 72mm OD proprietary face plate giving a partially loaded horn profile. Highly linear response. Useful high efficiency output at 92dB sensitivity.
Complete with a rear chamber reducing both Fs (950Hz) and back wave reflections from the dome. Priced individually, supplied in pairs. FREE UK DELIVERY
A Product Datasheet can be downloaded by clicking on the appropriate .pdf logo (where shown).
