Coles 4001K Super Tweeter 8 Ohm

Availability: In stock

Excl. Vat: £33.15 Incl. Vat: £39.78

Qty:

Quick Overview

The Coles 8 ohm 4001K Super Tweeter is now available again as new 2011 manufacture stock. Used by Spendor, many DiY designs particularly C Rogers and Atkinson transmission lines.

Frequency range 1.2 Khz - 35Khz, useable 8KHz>. 19mm coil. 61mm mounting hole required.

Also available in 4001G 16 ohm version (see separate page).

Be the first to review this product

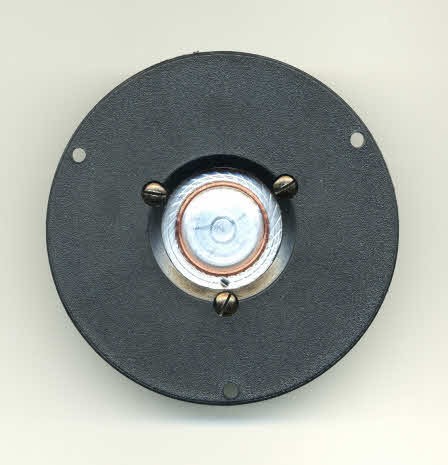

Coles 4001K 8 ohm Super Tweeter

Double click on above image to view full picture

More Views

Additional Information

Nominal Impedance	7-8 Ohm
Nominal Power RMS	120W
Vas ( l)	-
Nominal Free Air Resonance Fs	1.6Khz
Sensitivity (2.83V/1m)	87 dB
Nominal Rdc	6 Ohm
Qes	-
Qms	-
Qts	-

Details

The Coles 8 ohm 4001K Super Tweeter is now available again as new 2011 manufacture stock. Used by Spendor, many DiY designs particularly C Rogers and Atkinson transmission lines.

Frequency range 1.2 Khz - 35Khz, useable 8KHz>. 19mm coil. 61mm mounting hole required.

Also available in 4001G 16 ohm version (see separate page).
