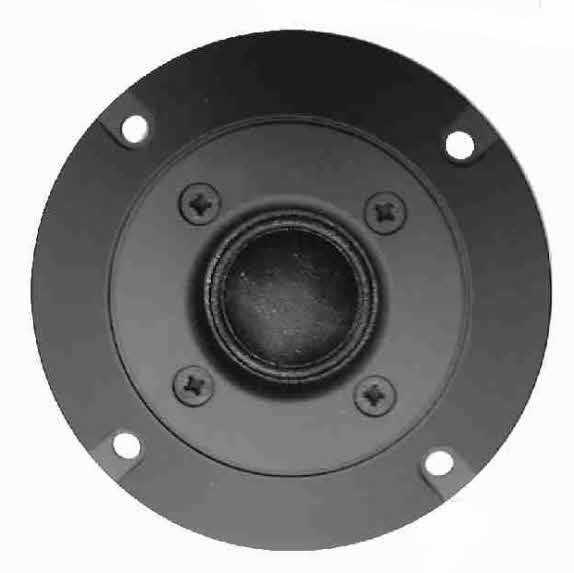

AUDAX TW025M1 - Replacement Tweeter for Soundcraft Absolute 2 Monitor
Double click on above image to view full picture
More Views
Additional Information
| Nominal Impedance | 8 ohm |
|---|---|
| Nominal Power RMS | 70W |
| Vas ( l) | - |
| Nominal Free Air Resonance Fs | 1200 Hz |
| Sensitivity (2.83V/1m) | 92dB |
| Nominal Rdc | 5.8 ohm |
| Qes | - |
| Qms | - |
| Qts | - |
Details
Audax TW025M1 is a high-quality 8 ohm 25 mm voice coil tweeter, aluminum bobbin and vented pole piece. We recommend replacing in pairs if possible for consistency. Used in many kit systems including World Design KLS series. Higher power handling (70W RMS) using Ferrofluid than TW025M0. Replacement Tweeter for Soundcraft Absolute 2 Monitor.
Designed with a high efficiency impregnated catenary textile dome which gives a very strong dome profile, and dual level damping. Exceptional Linearity +/-2dB 4Khz - 20Khz. Supplied with polymer faceplate with fibreglass reinforcement. Replacement aluminum wire voice coils are also available.
