AUDAX TW025A1 - direct replacement for HD100D25 w. Ferrofluid

Availability: In stock

Excl. Vat: £28.30 Incl. Vat: £33.96

Qty:

Quick Overview

Audax TW025A1 is a high-quality 8 ohm 25 mm voice coil tweeter,a direct replacement for the Audax HD100D25, HD12x9D25 and HD12x8D25 ferrofluid bodies but with improved performance.

Be the first to review this product

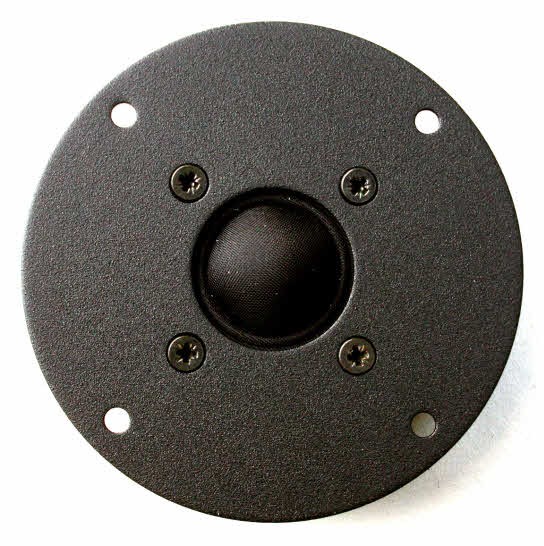

Audax TW025A1 tweeter HD12x9HD25 w. ferrofluid replacement

Double click on above image to view full picture

More Views

Additional Information

Nominal Impedance	8 ohm
Nominal Power RMS	70W
Vas ( l)	-
Nominal Free Air Resonance Fs	1200 Hz
Sensitivity (2.83V/1m)	90dB
Nominal Rdc	5.8 ohm
Qes	-
Qms	-
Qts	-

Details

Audax TW025A1 APPC2 is a high-quality 8 ohm 25 mm voice coil tweeter, a direct replacement for the Audax HD100D25 with Ferrofluid but with improved performance. We recommend replacing in pairs if possible for consistency.

This version has terminals at positions 4 and 8 on a clock.

Designed with a new 1” Catenary profile textile dome, which resembles an egg in profile and gives exception rigidity. Audax have sensibly fitted a replaceable good quality solid aluminium front plate, enabling easy exchange of faceplate types which are manufactured by Falcon. Replacement aluminium wire voice coils are also available. Ferrofluid.
