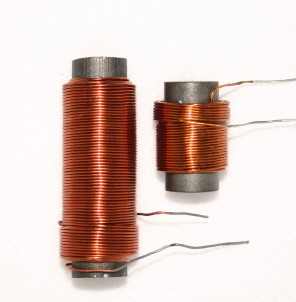

Audio Inductor HP056 High Power Ferrite Core 2.01mh - 2.25mH
Double click on above image to view full picture
More Views
Additional Information
| Series | High Power 0.56mm wire |
|---|---|
| Core Dia, mm: | 12mm |
| Core Length, mm: | <2.00mH 25mm, >2.00mH 50mm |
| Material | Ferrite Core |
| Wire Dia, mm: | 0.56mm |
Details
AUDIO INDUCTOR TYPE: High Power CORE TYPE: Ferrite CORE Ø / length (mm): <2.0mH 12/25mm, 2.0mH> 12/50mm WIRE Ø mm: 0.56mm. TYPICAL DCR Ω: 0.25mH 0.226Ω, 0.50mH 0.341Ω, 1.00mH 0.54Ω, 3.00mH 0.779Ω, 5.00mH 1.06Ω, 10.00mH 1.60Ω
Audio Inductors from Falcon Acoustics for loudspeaker crossovers and networks are wound with self-bonding enamelled wire on high permeability highest saturation ferrite or iron dust cores, or plastic rectangular bobbins (air cores), handling up to twice as much power for the same distortion as some other cores. Falcon has supplied many leading loudspeaker manufacturers with components, both in the United Kingdom and abroad and this is your guarantee of high quality. Supplied tinned. RoHS compliant.
